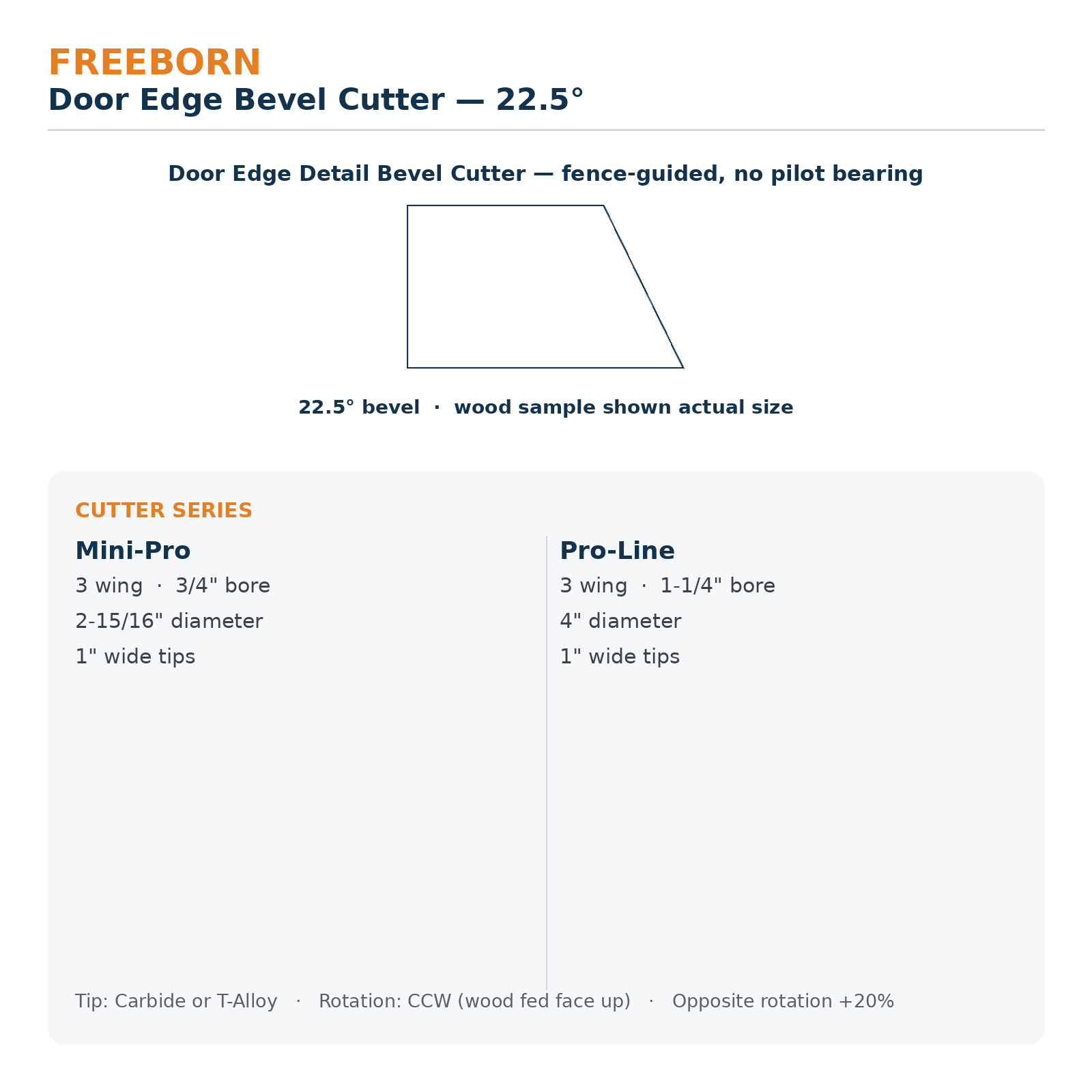

Door Edge Bevel Cutter — 22.5°, Mini-Pro (3/4″ Bore)

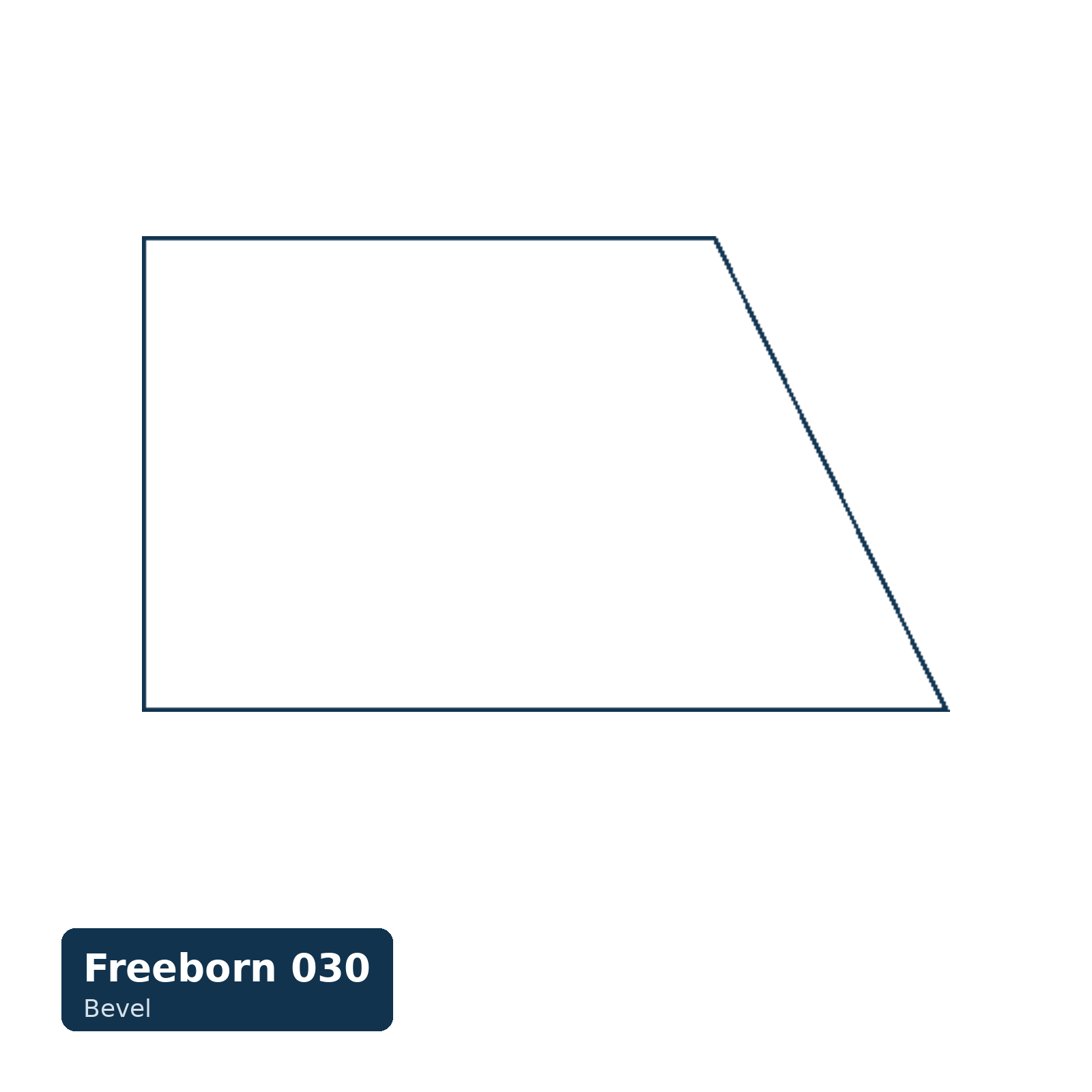

Cuts a 22.5° bevel along a door edge or panel edge — half of 45°, which makes it the angle to reach for when two bevelled faces need to meet at a right angle. Freeborn builds each angle as a pair in opposite hands, so this cutter and MC-57-031 both cut 22.5° but present the bevel from opposite sides; pick the one that suits your feed direction and which face of the door carries the detail. Carries 1″ wide tips. The four published angles are 15° (035/036), 22.5° (030/031), 30° (025/026) and 45° (027/028) — for any other angle, or a wider bevel than these, Freeborn quotes custom from their cutter department. Mini-Pro: 3 wing, 3/4″ bore. The Pro-Line equivalent is PC-17-030 on a 1-1/4″ bore.
