Door Edge Bevel Cutter — 15°, Mini-Pro (3/4″ Bore)

$259.00

Cuts a 15° bevel on a door edge — the shallowest published. 1″ wide tips. Mini-Pro 3/4″ bore, 3-wing. Pairs with MC-57-036.

Also listed as: 2 15/16 X 1 X 3/4 Bore Carbide Tipped Finger Pull Detail
SKU: MC-57-035 Categories: , Brand:
Quantity

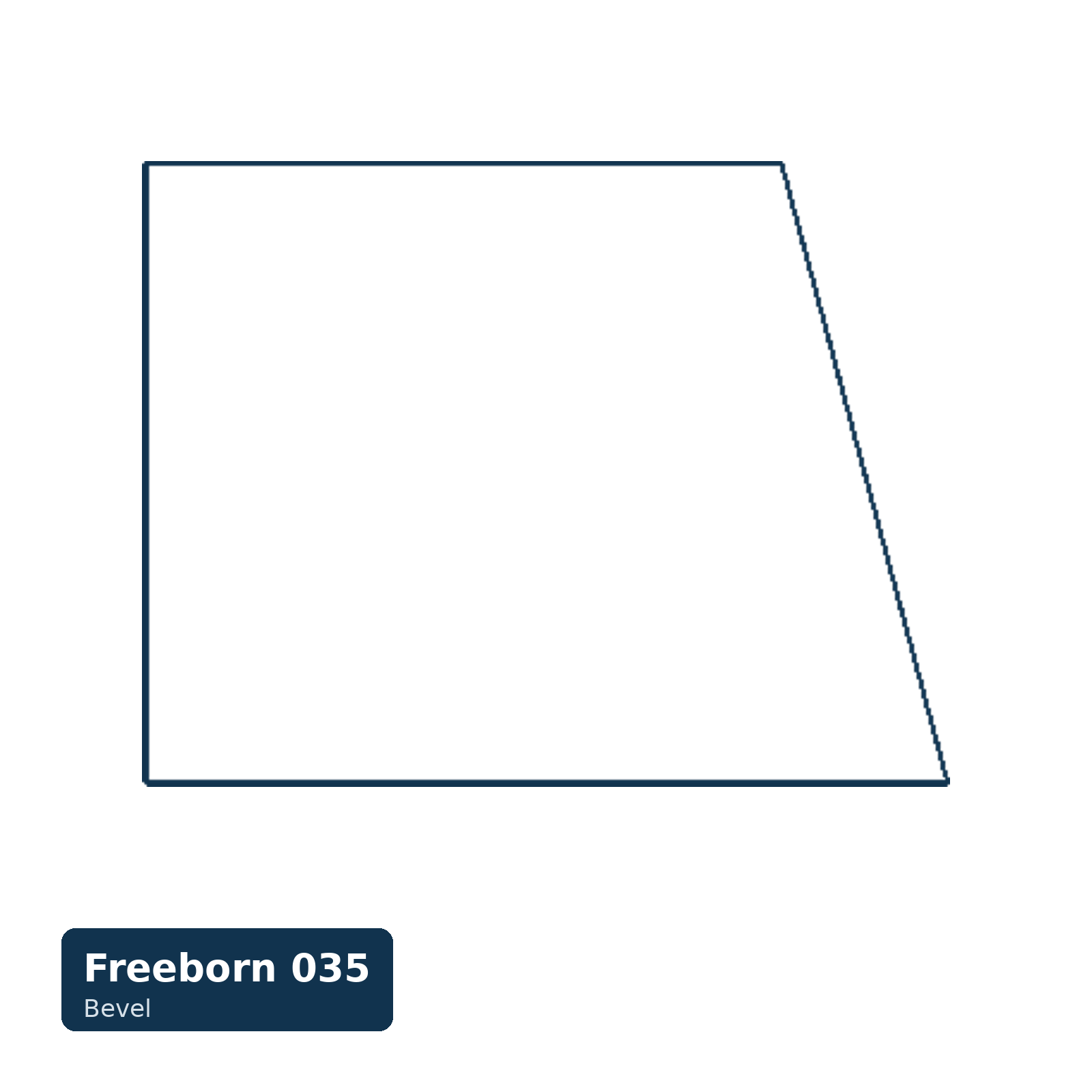

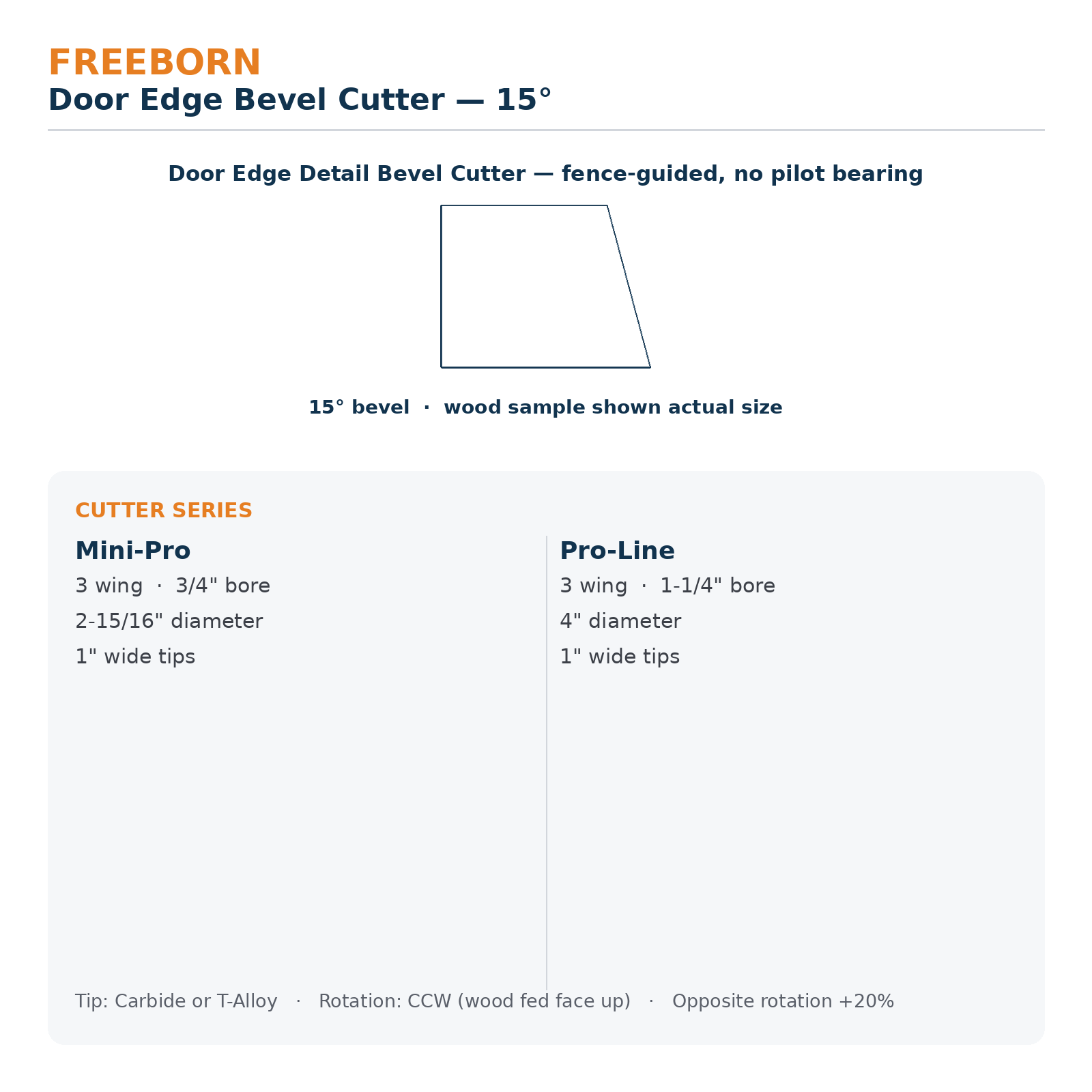

Cuts a 15° bevel along a door edge or panel edge — the shallowest angle Freeborn publishes, for a long, subtle chamfer that catches light across a wide face rather than cutting a hard line. Freeborn builds each angle as a pair in opposite hands, so this cutter and MC-57-036 both cut 15° but present the bevel from opposite sides; pick the one that suits your feed direction and which face of the door carries the detail. Carries 1″ wide tips. The four published angles are 15° (035/036), 22.5° (030/031), 30° (025/026) and 45° (027/028) — for any other angle, or a wider bevel than these, Freeborn quotes custom from their cutter department. Mini-Pro: 3 wing, 3/4″ bore. The Pro-Line equivalent is PC-17-035 on a 1-1/4″ bore.
