Door Edge Bevel Cutter — 15° (Opposite Hand), Mini-Pro (3/4″ Bore)

$259.00

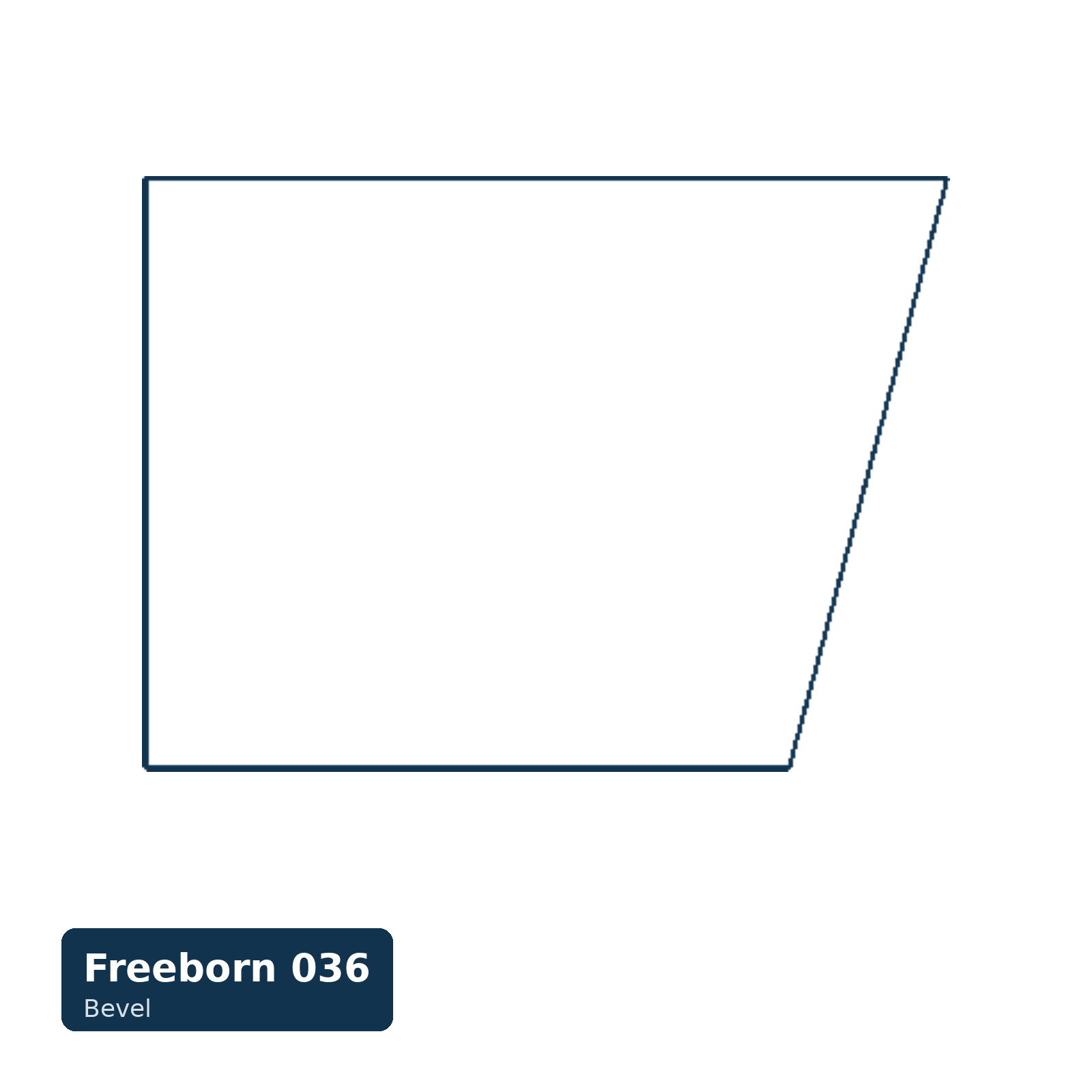

Cuts a 15° bevel on a door edge, opposite hand to MC-57-035. 1″ wide tips. Mini-Pro 3/4″ bore, 3-wing.

Also listed as: 2 15/16 X 1 X 3/4 Bore Carbide Tipped Finger Pull Detail
SKU: MC-57-036 Categories: , Brand:
Quantity

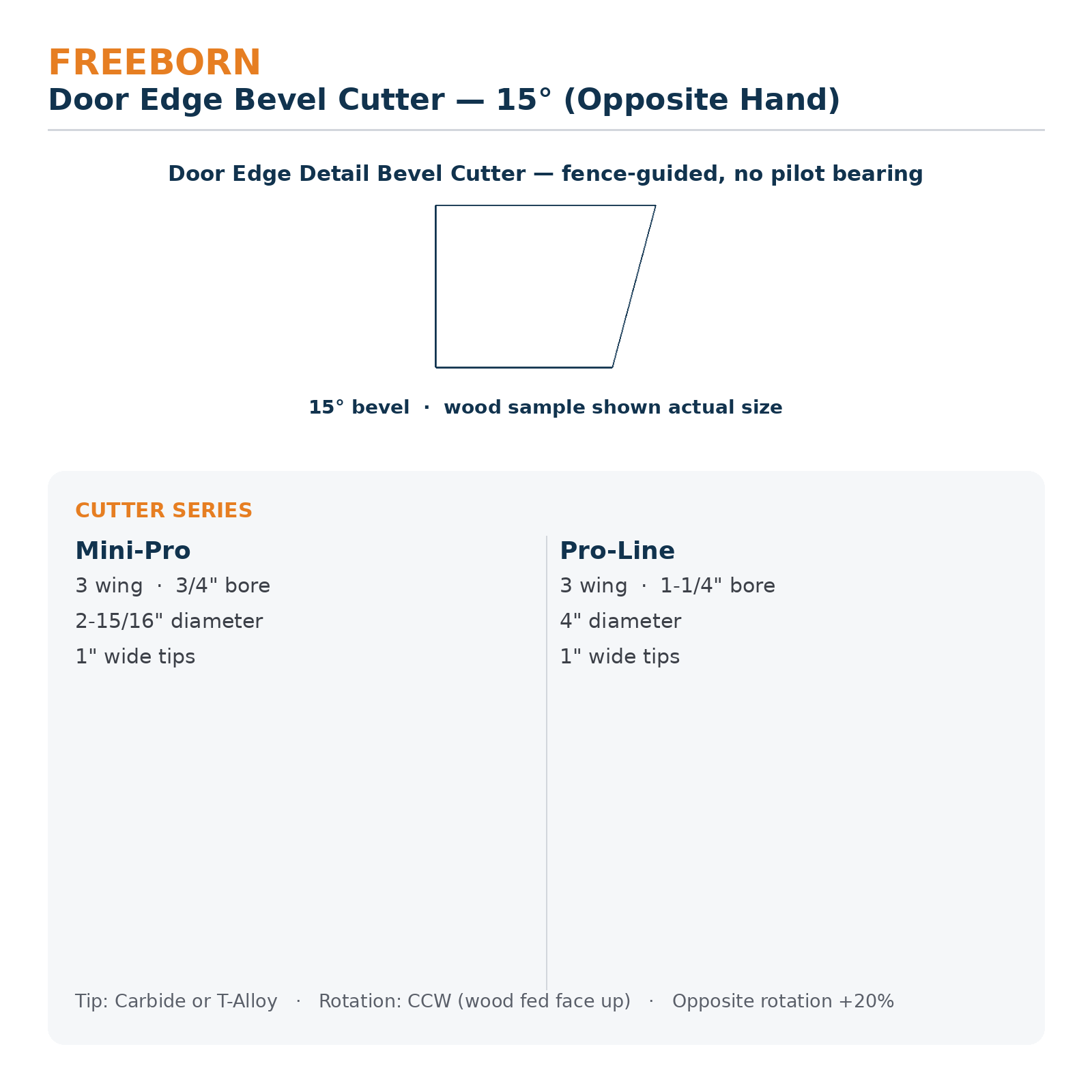

Cuts a 15° bevel along a door edge or panel edge, presenting the bevel from the opposite side to MC-57-035. Freeborn builds each bevel angle as a pair in opposite hands — same angle, mirrored — so the choice between them comes down to your feed direction and which face of the door carries the detail. At 15° this is the shallowest angle Freeborn publishes: a long, subtle chamfer that catches light across a wide face rather than cutting a hard line. Carries 1″ wide tips. The four published angles are 15° (035/036), 22.5° (030/031), 30° (025/026) and 45° (027/028) — for any other angle, Freeborn quotes custom from their cutter department. Mini-Pro: 3 wing, 3/4″ bore. The Pro-Line equivalent is PC-17-036 on a 1-1/4″ bore.
