V-Paneling & T&G Cutter — Profile 030, Mini-Pro (3/4″ Bore)

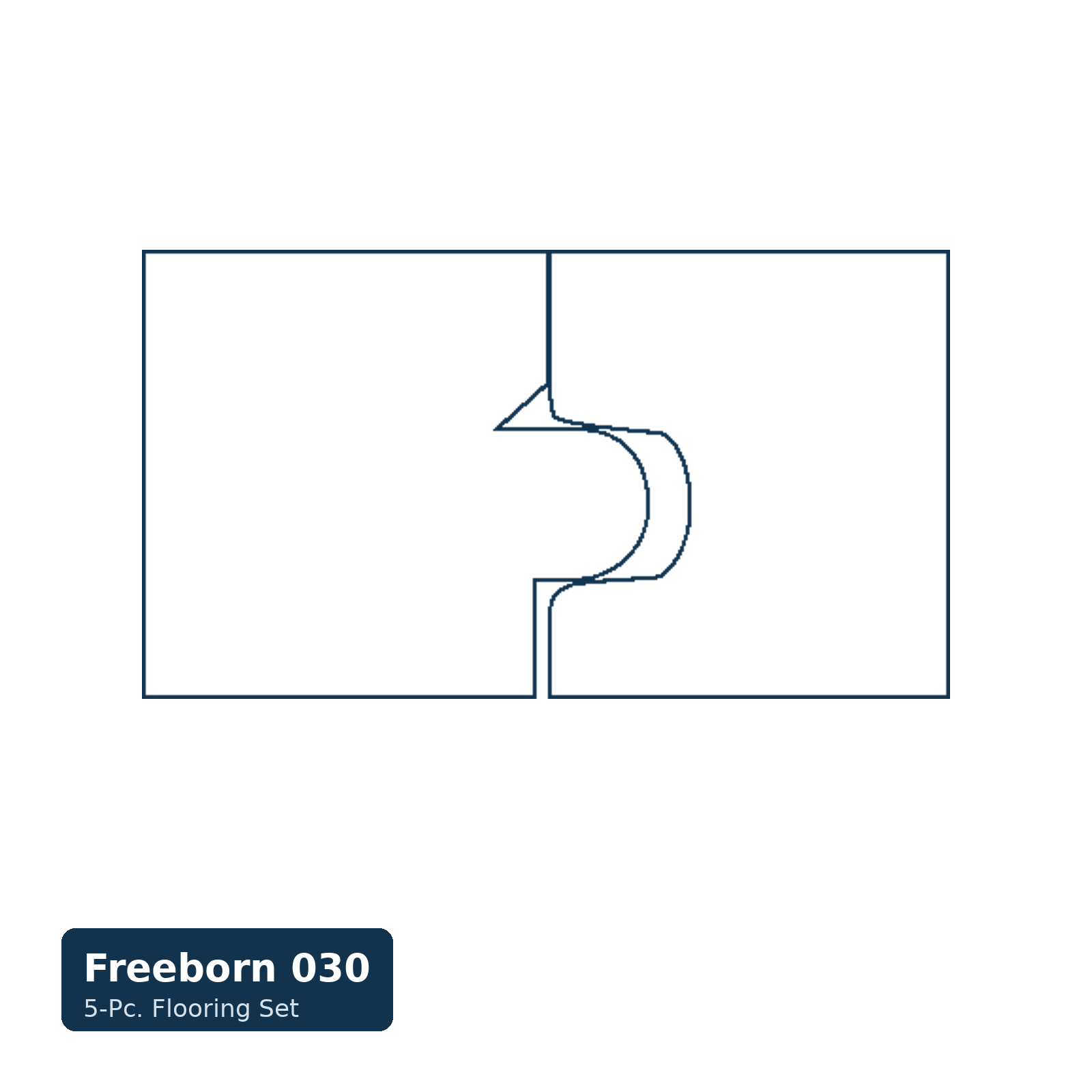

The MC-59-030 is the profile 030 V-paneling cutter for the Freeborn Mini-Pro 3/4″ bore spindle — cutting the tongue-and-groove edge joint with a concave seam that is proportionally different from profile 020 (MC-59-020). The three concave-seam profiles available in the Mini-Pro range (020, 030, 040) cover a range of seam widths and depths; profile 030 sits between the 020 and 040 in proportion. Verify against Freeborn’s V-paneling profile catalog to confirm which proportion matches the paneling design specification before ordering. All three produce an inward-scooping hollow seam visible at each board joint in the assembled panel. Runs with the AM-90-035 rub bearing for cut depth control. 3/4″ bore, 2-15/16″ OD, 3-wing, CCW, carbide. FB-VP-PL-030 is the Pro-Line (1-1/4″ bore, 4″ OD, AP-90-052 bearing) version. Profile 020 and 040 are the neighboring options in this series.
