Raised Panel Cutter — Profile 204, Pro-Line (1-1/4″ Bore)

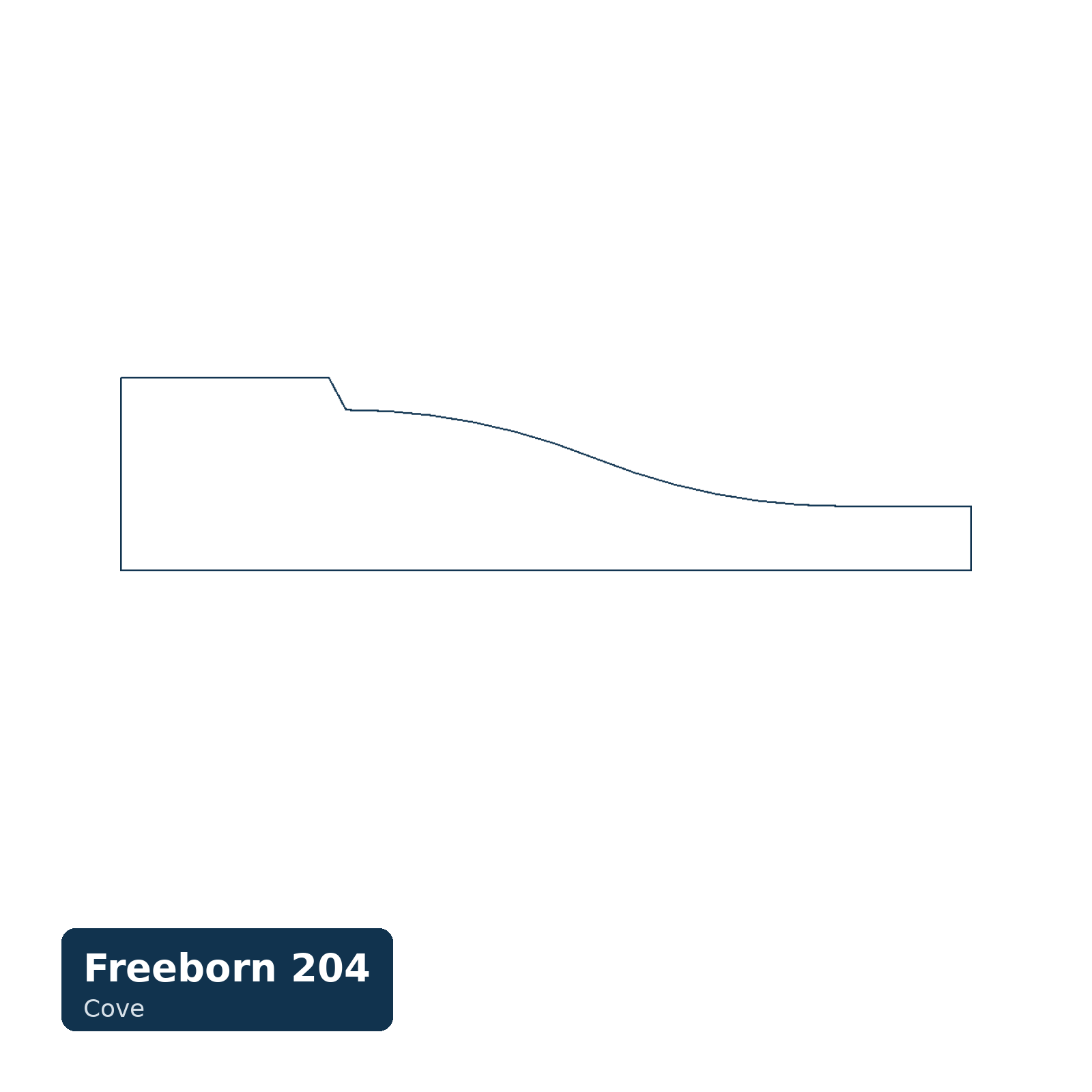

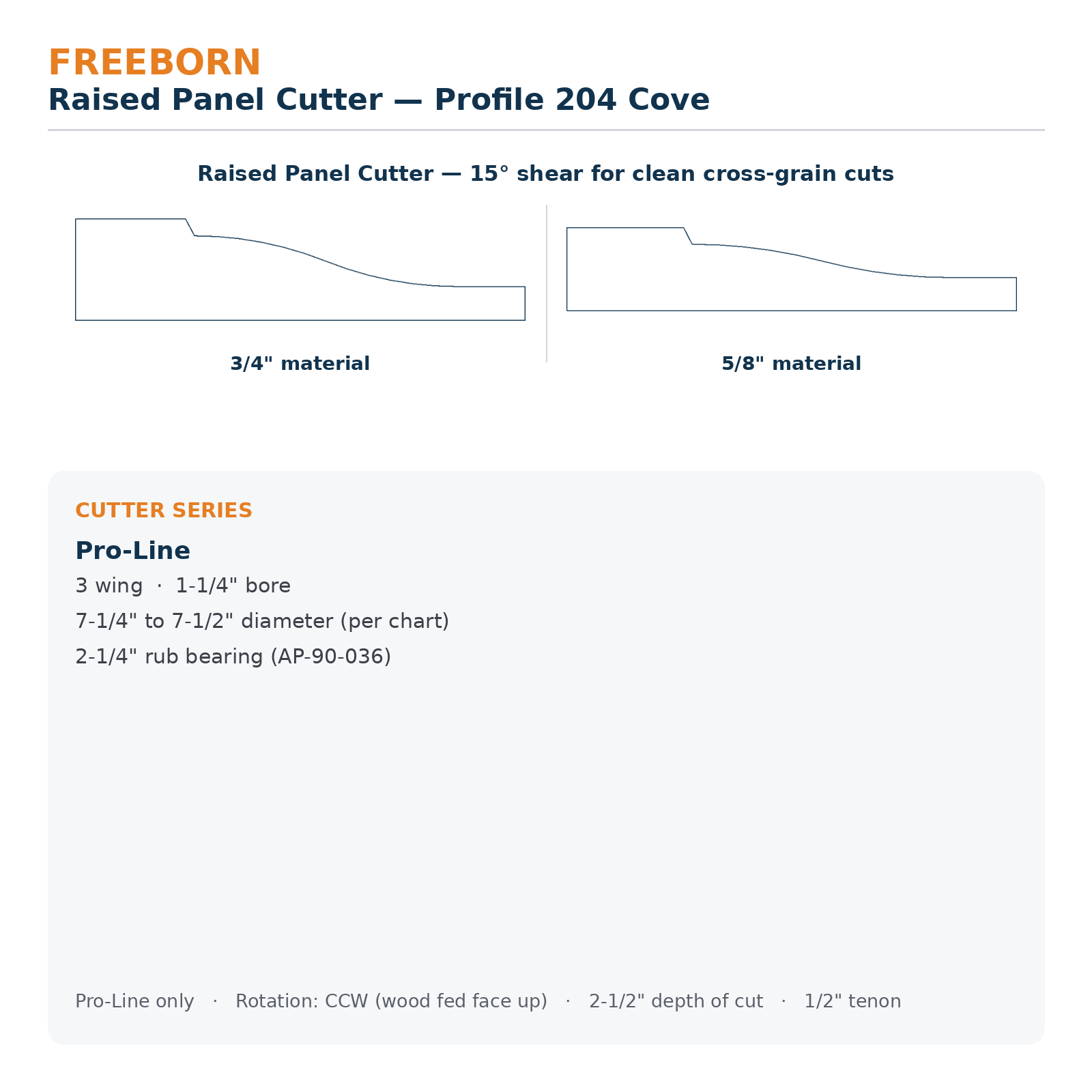

Raises the center field of a large cabinet door panel to the profile 204 edge — one of five Pro-Line-only profiles in Freeborn’s large-format raised panel range, sized well beyond the paired 001–018 series. These cutters take a 2-1/2″ overall depth of cut and leave a 1/2″ tenon, which is what lets them carry a full-size architectural panel in one pass. The exact edge shape is carried by Freeborn’s profile 204 reference drawing rather than a shape name — match it to the drawing for the detail you want. Pro-Line only: 3 wing, 1-1/4″ bore, carbide or T-Alloy, counter-clockwise, running on an AP-90-036 rub bearing. Diameters across this range vary from 7-1/4″ to 7-1/2″; the catalog does not publish a per-profile figure, so confirm the exact diameter before ordering if spindle clearance is tight.
