Reversible Pattern Detail Cutter — Profile 001, Pro-Line (1-1/4″ Bore)

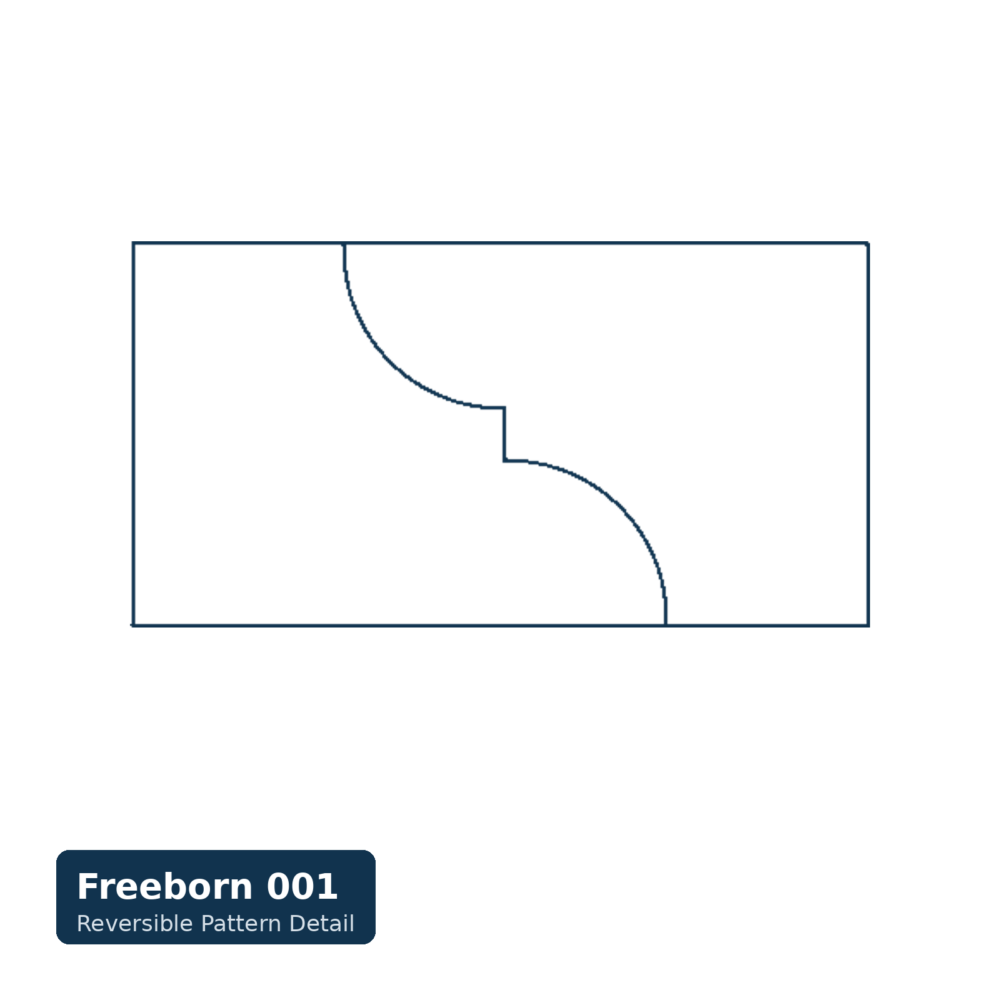

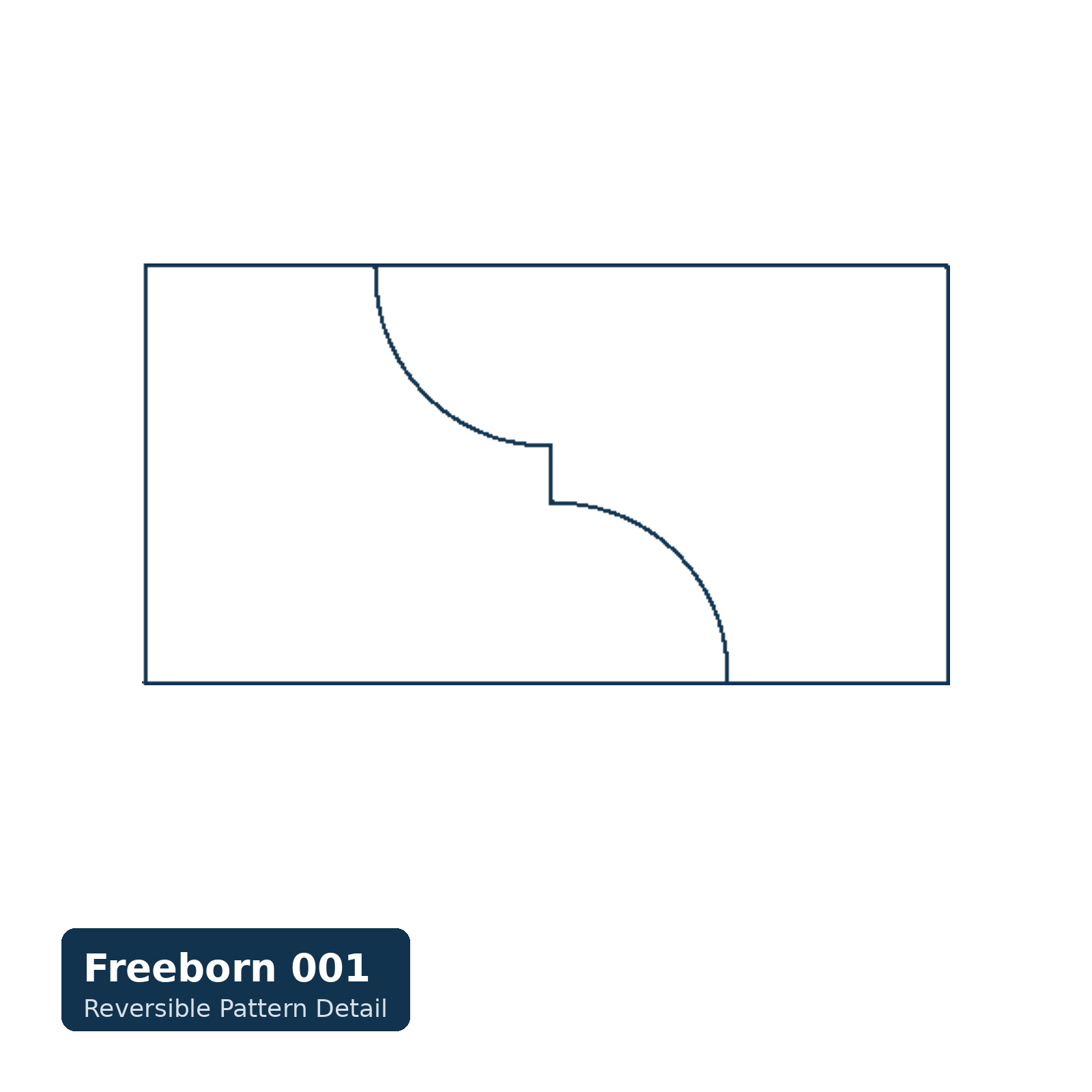

The FB-RPD-PL-001 is the Pro-Line reversible pattern-detail cutter for Freeborn’s 1-1/4″ bore spindle — cuts a decorative profile 001 that produces two distinct visual design outcomes depending on workpiece orientation, with the same cutter handling both orientations. Reversing the workpiece reverses the profile’s visual reading, providing two complementary design options from a single tool investment — useful in programs where both orientations appear on different components within the same product line. Profile 001 is one of three pattern-detail profiles in the series; profiles 002 (FB-RPD-PL-002) and 003 (FB-RPD-PL-003) offer different pattern geometries with distinct visual characters. The Pro-Line series runs the same profile geometries as the Mini-Pro (MC-61-xxx) but at the 1-1/4″ bore and 4″ OD. Used in door panel profiling, furniture component detailing, and architectural millwork where a clean, repeatable decorative shaper pattern is part of the design specification. Verify profile 001 against Freeborn’s catalog. 1-1/4″ bore, 4″ OD, 3-wing, CCW.
