HSK 63F × ER40 Tool Holder — 125mm

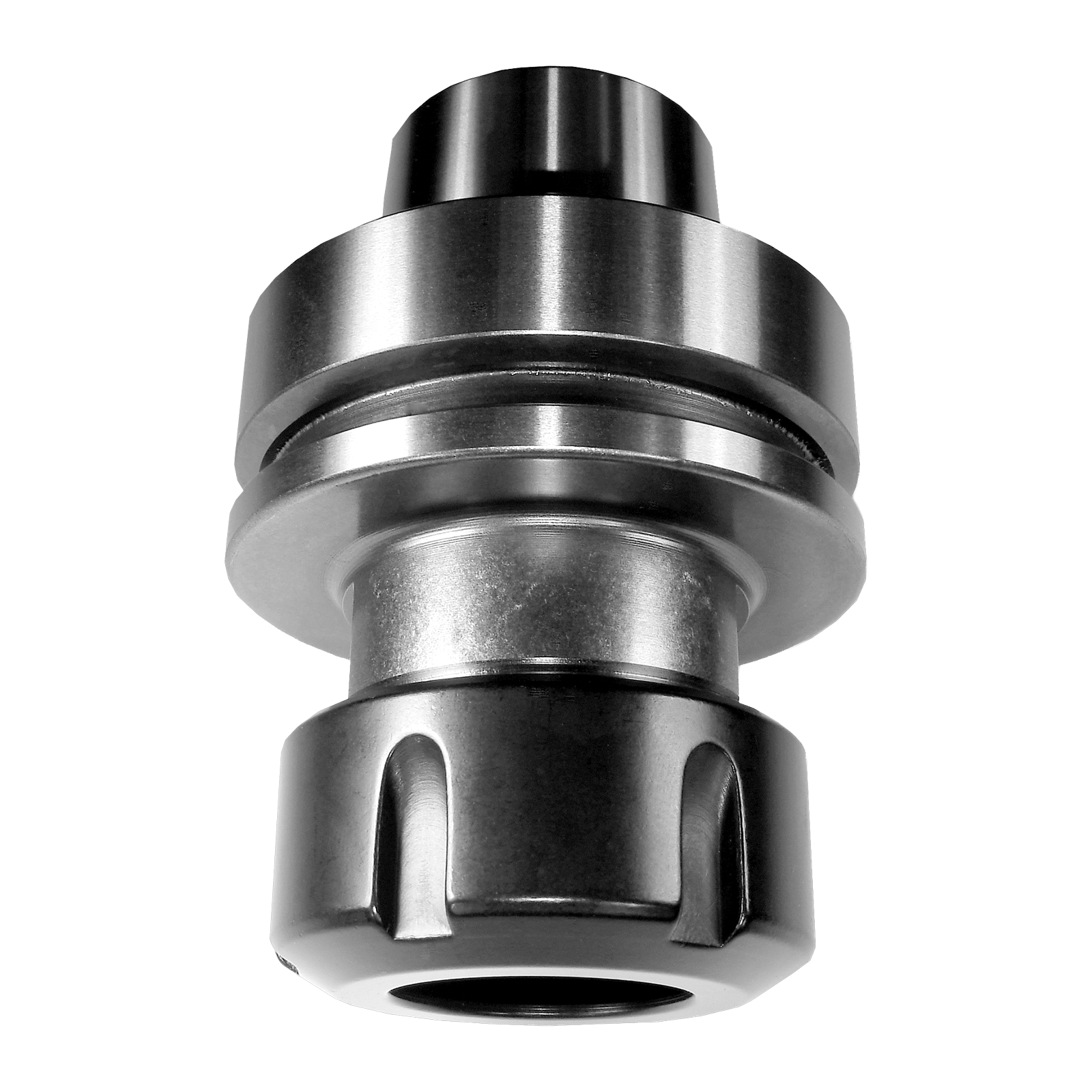

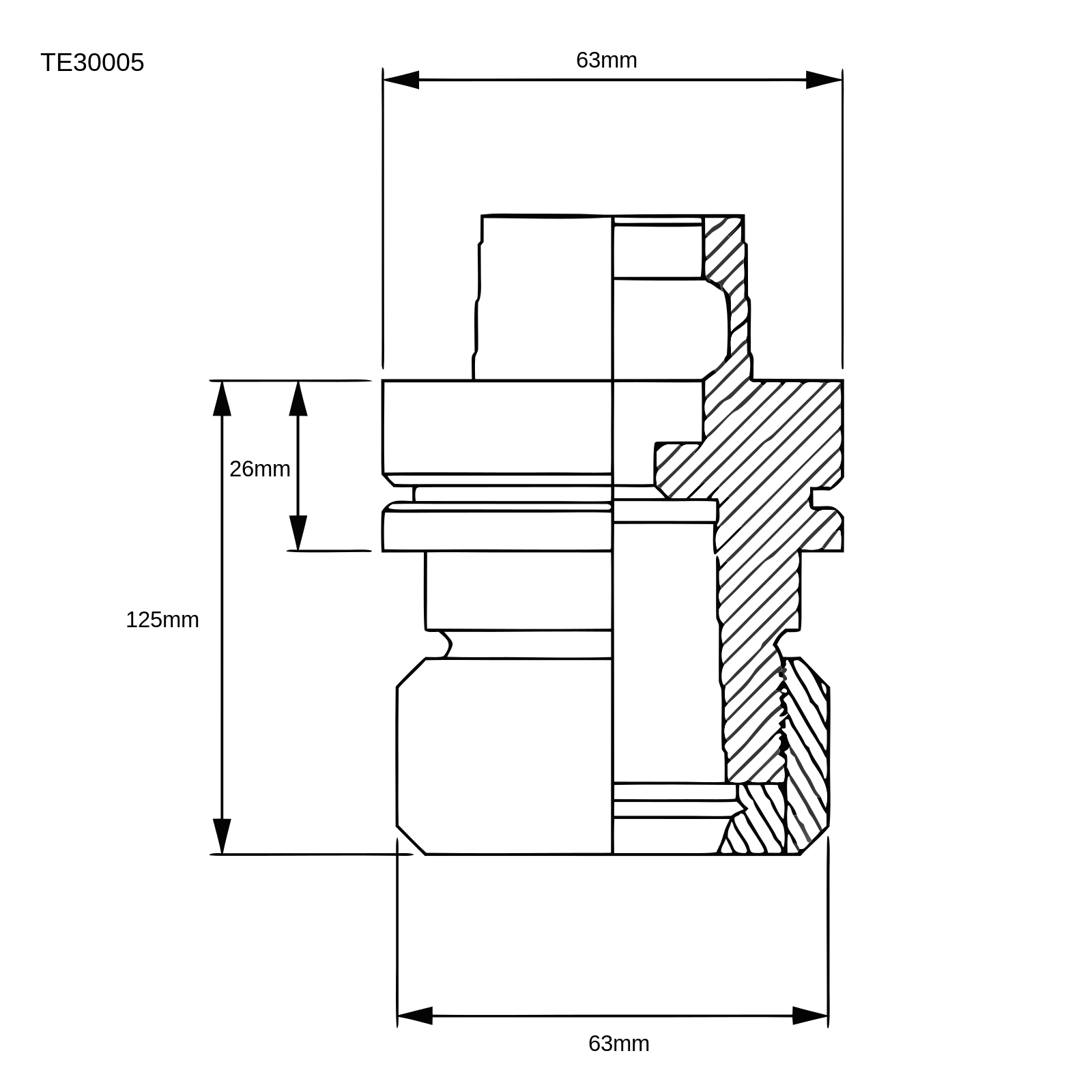

The Schmidt TE30005 is an HSK 63F taper to ER40 collet chuck arbor, 125mm. HSK (Hollow Shank Taper) tool holders provide superior rigidity and repeatability compared to BT tapers at high spindle speeds — preferred in high-speed CNC machining centers and precision CNC routers. The HSK 63F interface mates with the machine’s HSK 63F spindle taper; the ER40 collet chuck on the opposite end accepts ER40 collets for tool clamping. The 125mm length sets the gauge length from spindle face to collet nose. Verify HSK taper size (63F) and gauge length against the machine specification.
