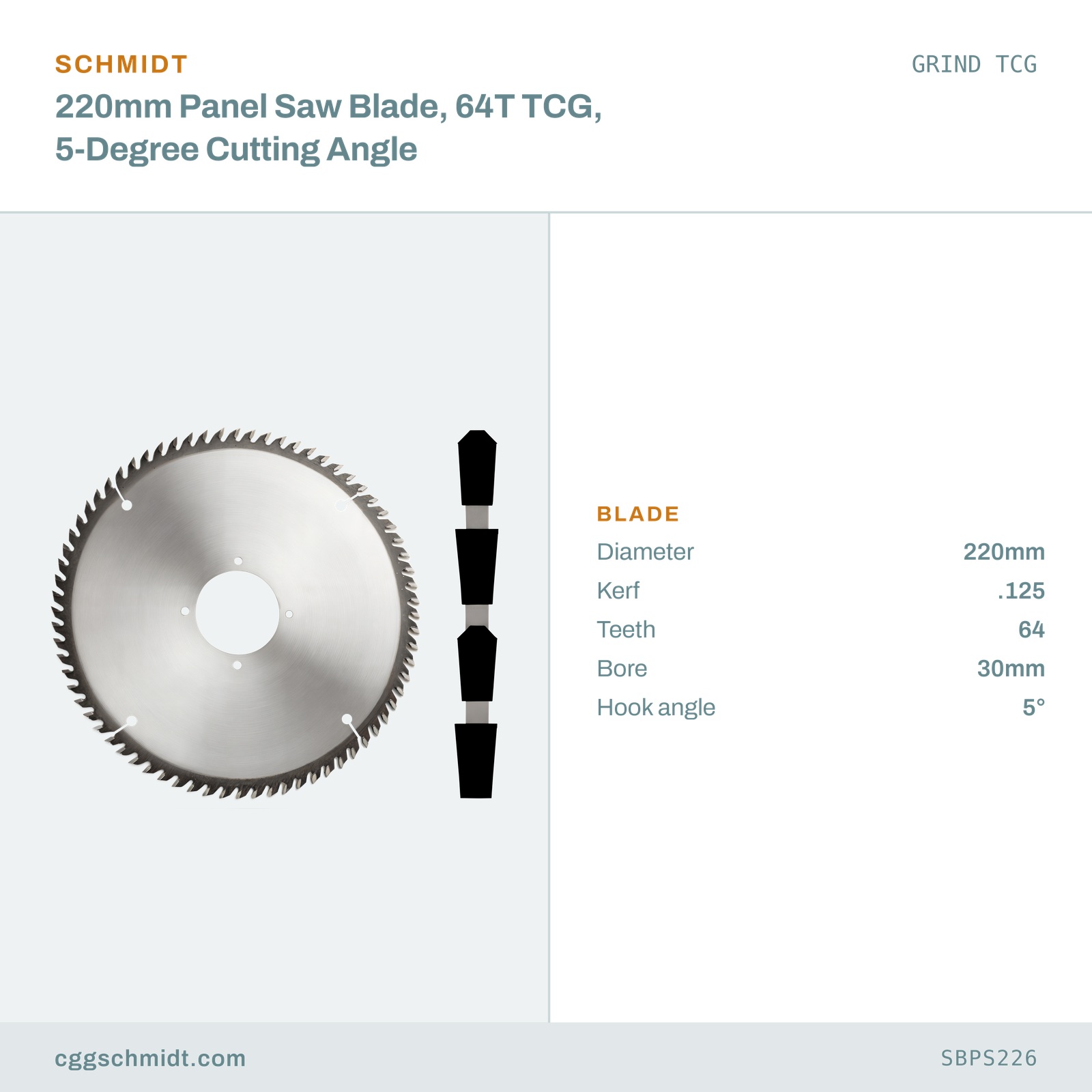

220mm Panel Saw Blade, 64T TCG, 5-Degree Cutting Angle

European sliding panel saws running 220mm blades need a blade configured for the materials these saws typically process. This 64-tooth triple chip grind blade on a 30mm bore operates at a 5-degree cutting angle and handles composite sheet goods, melamine-faced board, aluminum, solid surface, and abrasive materials where TCG geometry prevents edge chipping and delamination. Triple chip grind produces the flat-bottomed kerf and scraping tooth action that brittle materials demand — alternating flat trapper and chamfered raker teeth prevent the fracture that ATB geometry causes in laminated and composite panel materials. At 64 teeth on 220mm, tooth density is sufficient to produce clean edges in double-face melamine and laminate-faced sheet goods without surface chipping on either the top or bottom face. The 30mm bore is standard on European sliding panel saws in this blade diameter class. The 5-degree cutting angle is matched to the geometry of the saw blade mount on machines spec’d for this blade. Carbide tips are ground to TCG geometry to handle abrasive materials through production-level panel saw use.
