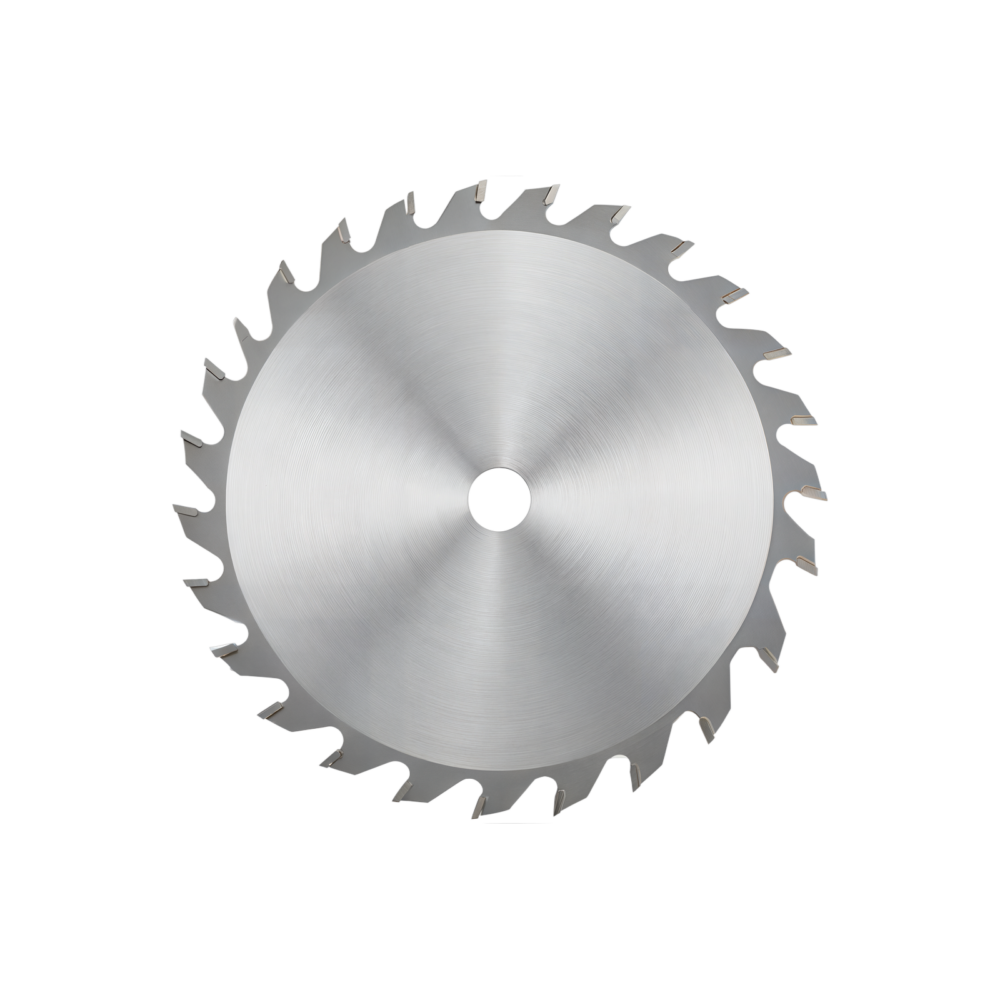

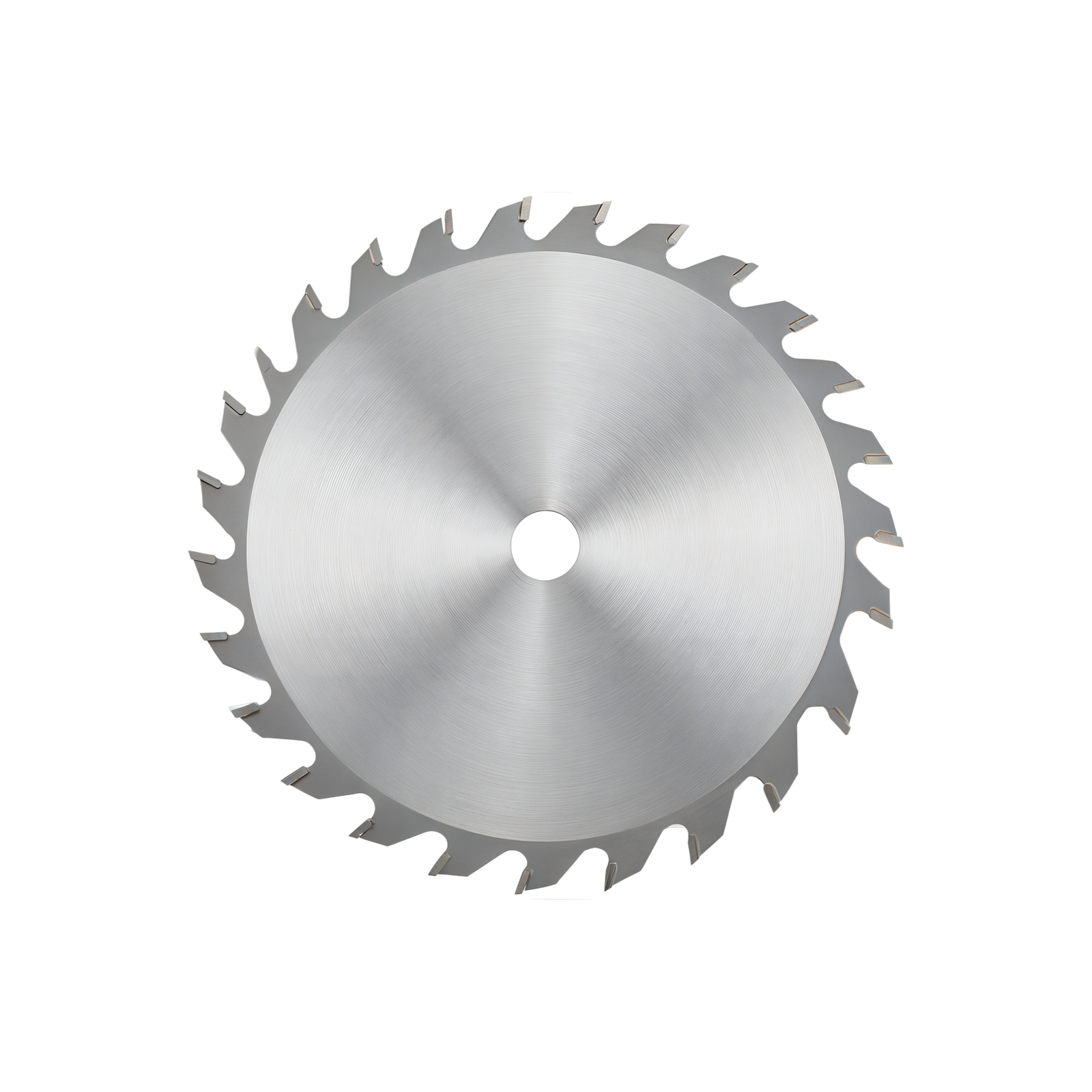

10 in. Dado Saw Blade Set, 24T, 5/8 in. Bore

The 5/8 in. bore version of the 10 in. dado set, for cabinet saws and radial arm saws on a 5/8 in. arbor — the standard arbor size on most North American table saws. Mechanically identical to the 1 in. bore set (SBDS912); only the bore differs.

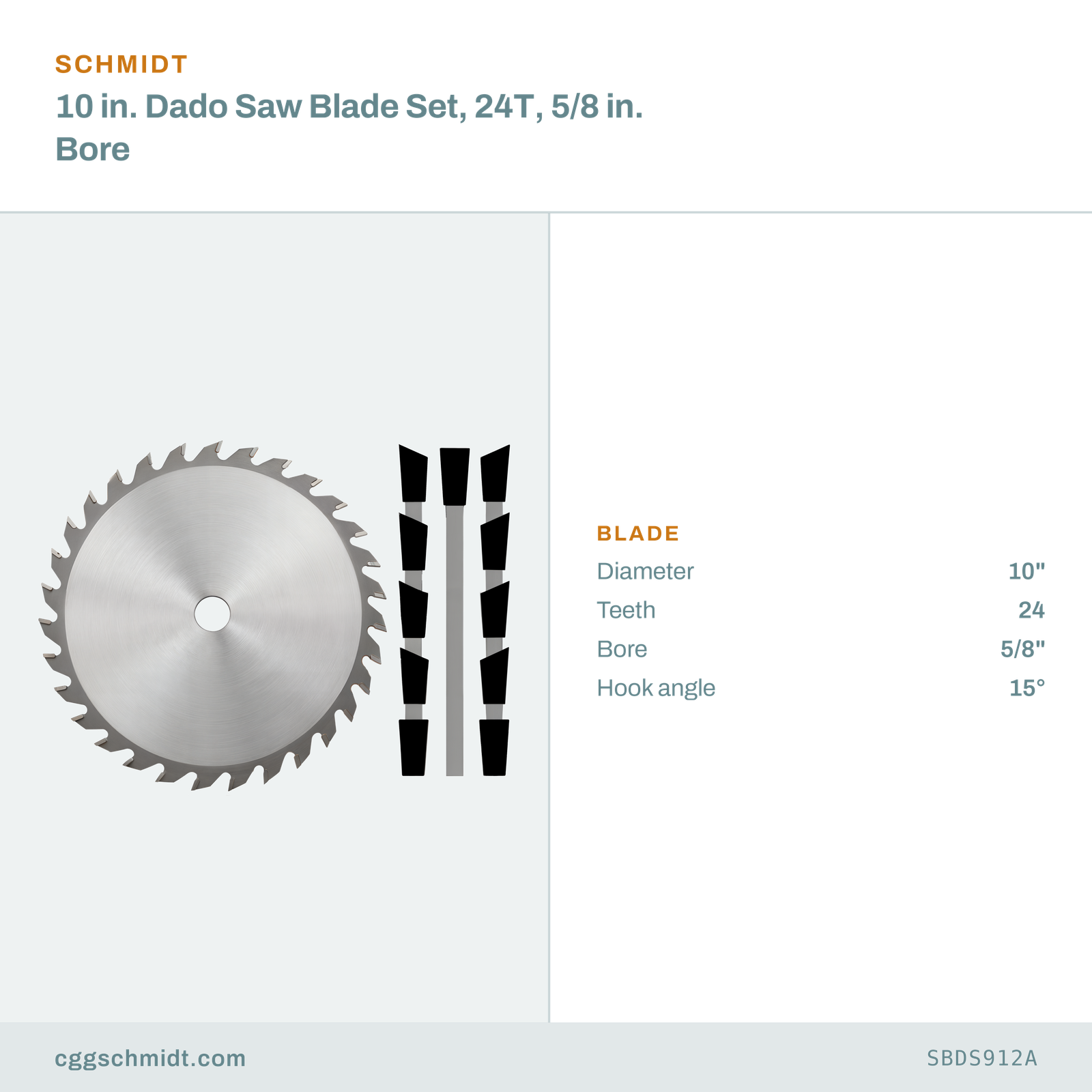

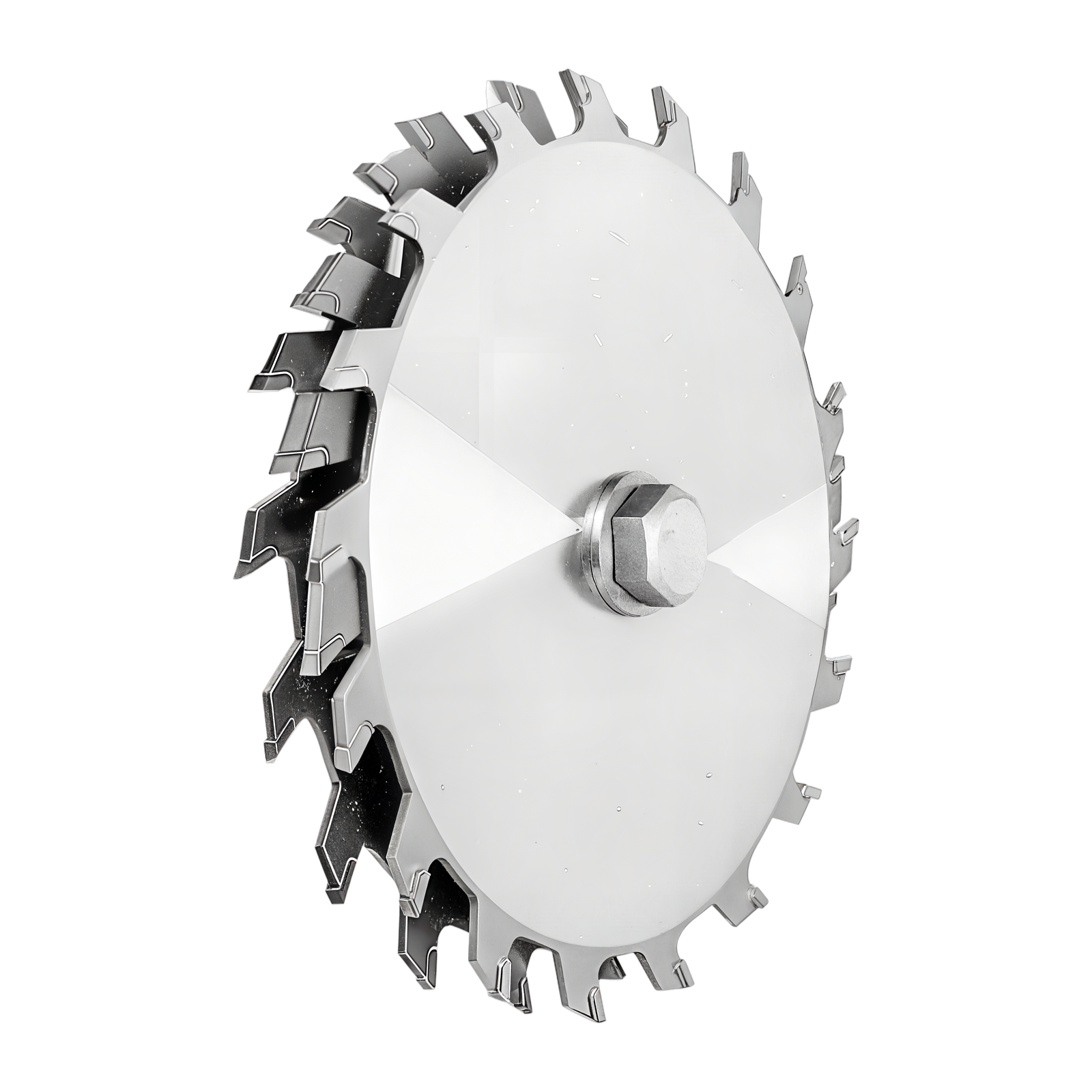

It cuts groove widths from 1/4 in. to 13/16 in. by stacking two 1/8 in. 24-tooth outer blades with four chippers — two at 1/8 in., one at 1/4 in. and one at 1/16 in. — which combine to the 13/16 in. maximum. The outer blades score clean shoulder lines at the edges of the cut while the chippers clear the waste between them, leaving a flat bottom ready for a fitted joint. Ground at a 15° hook. Cuts with or against the grain in hardwood, plywood, MDF and solid panel.

For a 1 in. arbor, order SBDS912. For the same set in 8 in. and 12 in., see SBDS914 and SBDS913.
