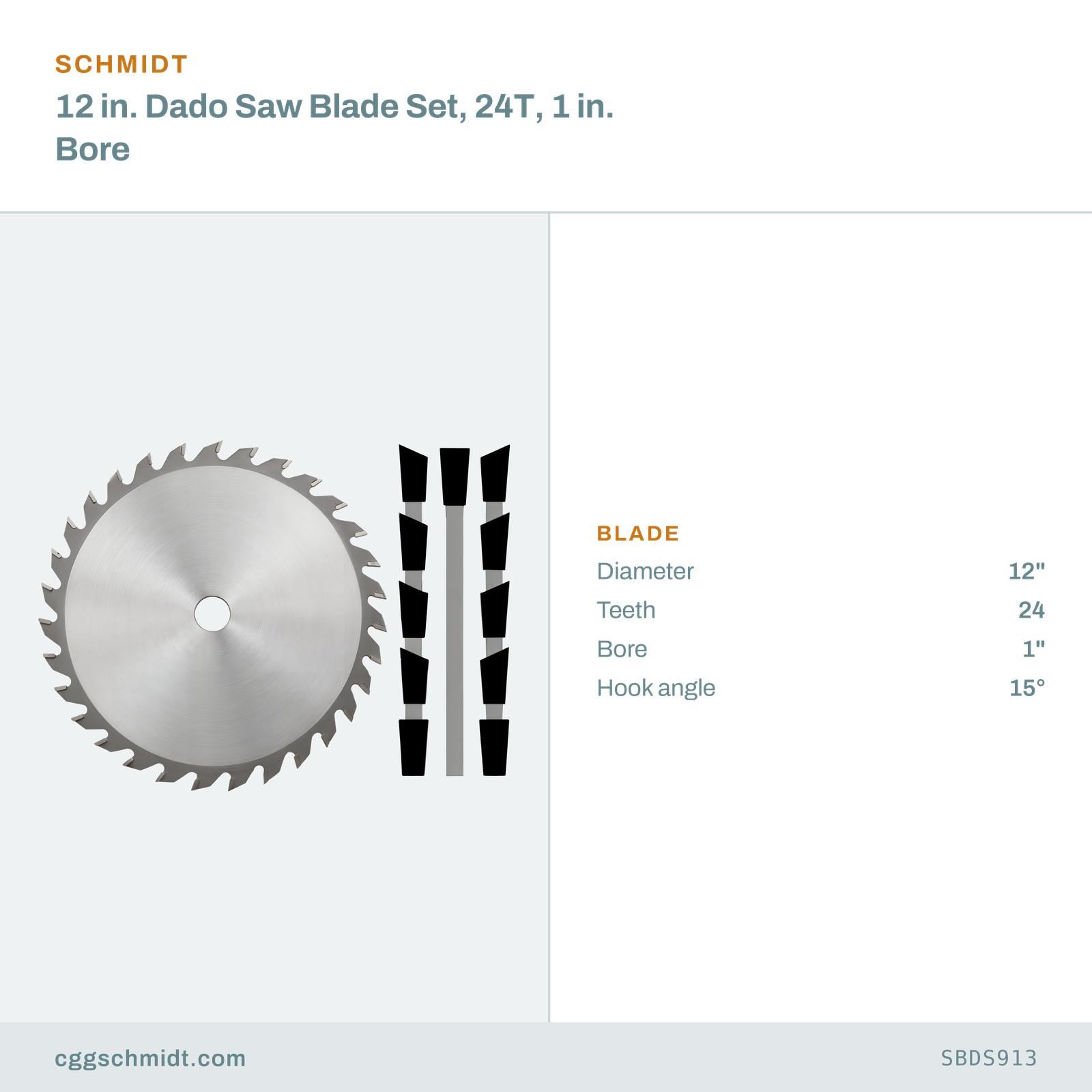

12 in. Dado Saw Blade Set, 24T, 1 in. Bore

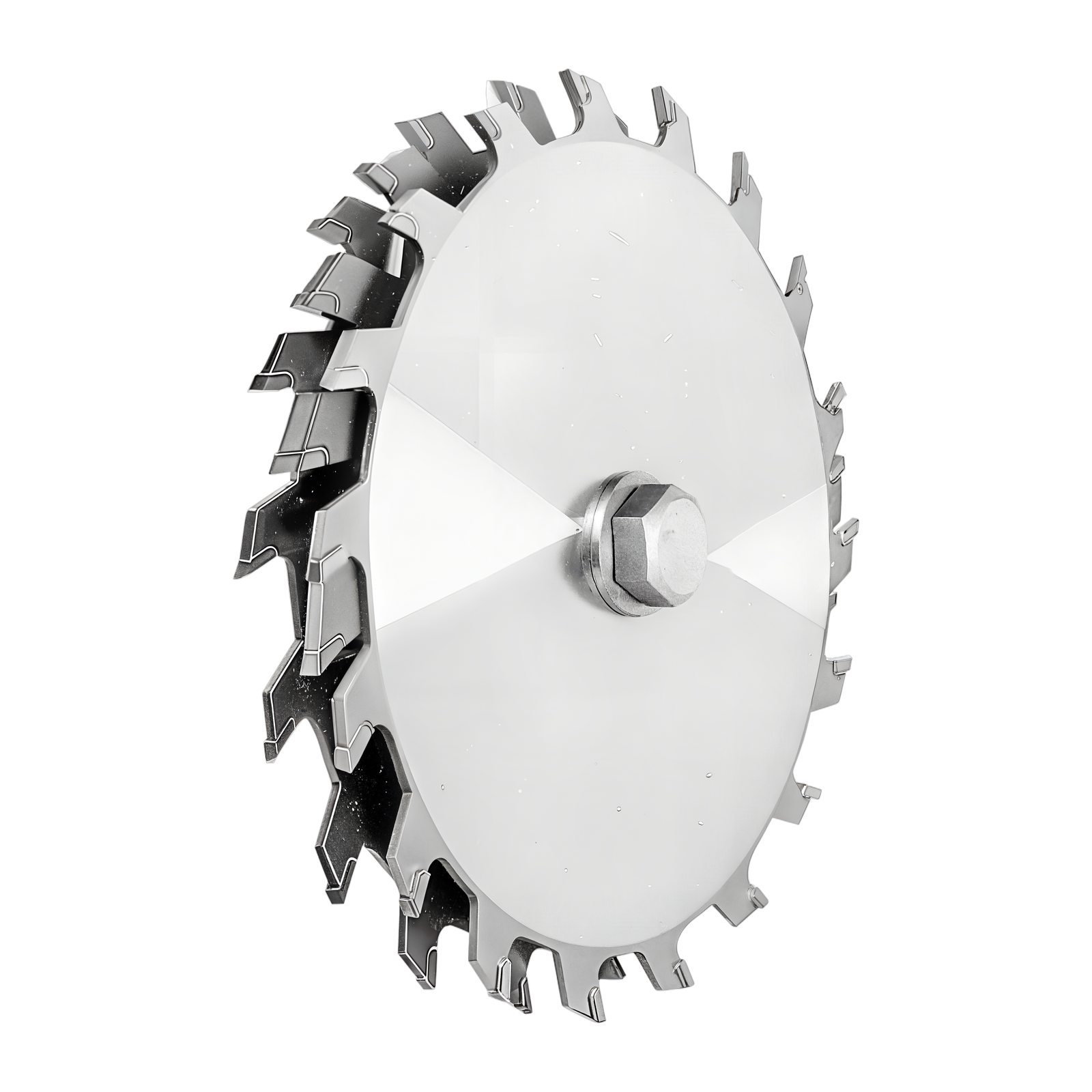

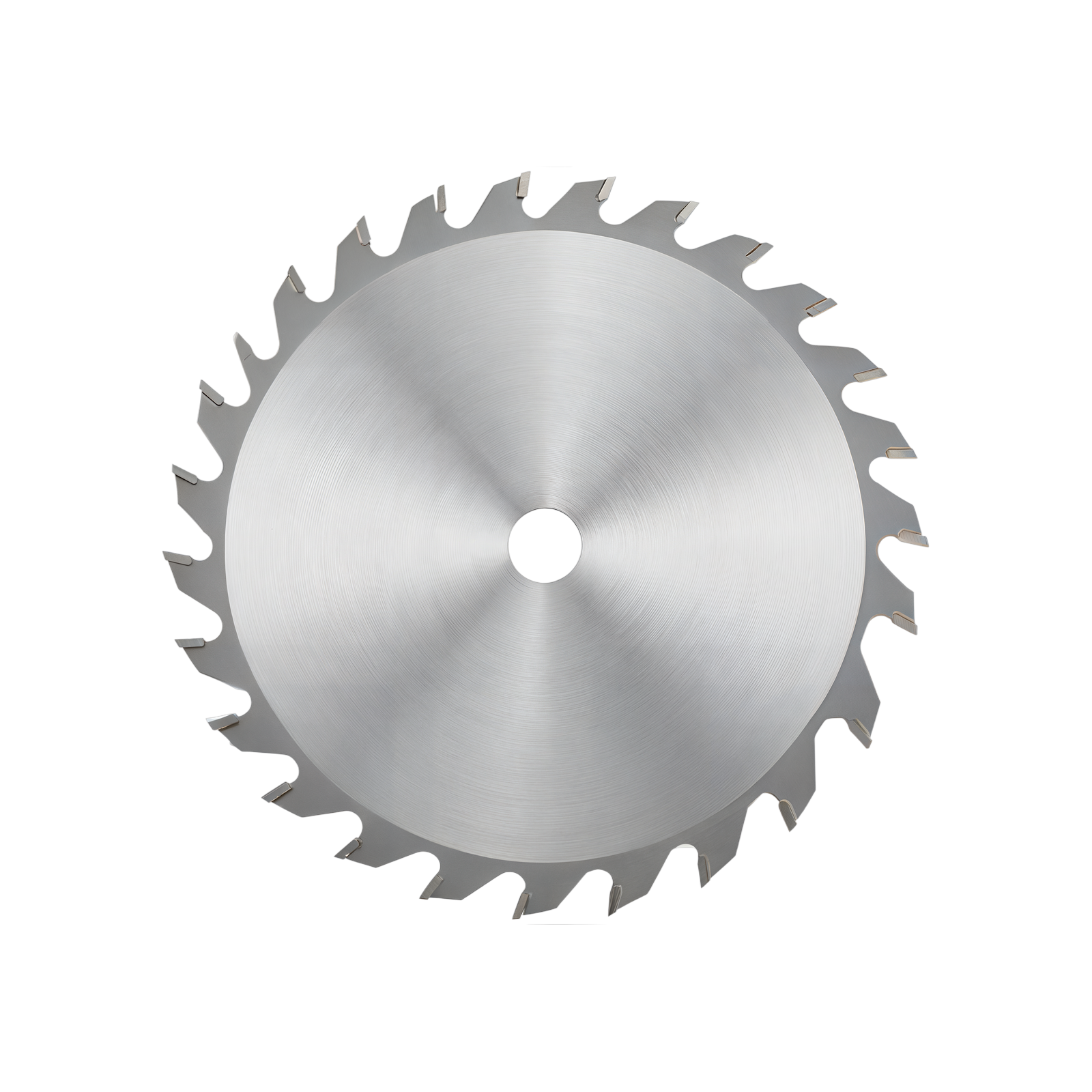

Where dado joinery has to be cut in thick stock — deep shelf housings in solid timber, cross-lap joints in structural members, wide grooves in heavy panel — the limit is usually cutting depth rather than width. This dado set at 12 in. on a 1 in. bore is the largest in the range, and the extra diameter over the 10 in. set is what buys that depth. It cuts groove widths from 1/4 in. to 13/16 in. by stacking two 1/8 in. 24-tooth outer blades with the supplied chippers — two at 1/8 in., one at 1/4 in. and one at 1/16 in. — which combine to the 13/16 in. maximum. The outer blades score clean shoulder lines at the edges of the cut while the chippers clear the waste between them, leaving a flat bottom ready for a fitted joint. Ground at a 15° hook. The 1 in. bore suits large-format cabinet saws and heavy radial arm saws in that arbor class — confirm your arbor will accept a full 13/16 in. stack before ordering. Cuts with or against the grain in hardwood, plywood, MDF and solid panel. For the same set in smaller diameters, see SBDS912 (10 in.) and SBDS914 (8 in.).
