Double-Sided Cope & Pattern Set (8-Piece) — Profile 011, Mini-Pro (3/4″ Bore)

$1,309.00

Complete eight-piece double-sided Cope & Pattern set for stile-and-rail doors – cope, pattern, glass-panel, and tongue-and-groove in one set. Profile 011, Mini-Pro 3/4″ bore. Runs on a rub bearing.

Also listed as: 2 15/16 X 3/4 BORE 8 PC C & P SETWITH SQUARE CORNERS
SKU: MC-51-011 Categories: , Brand:
Required bearing: AM-90-027
Quantity

Frequently Bought Together

Total price: $1,383.00

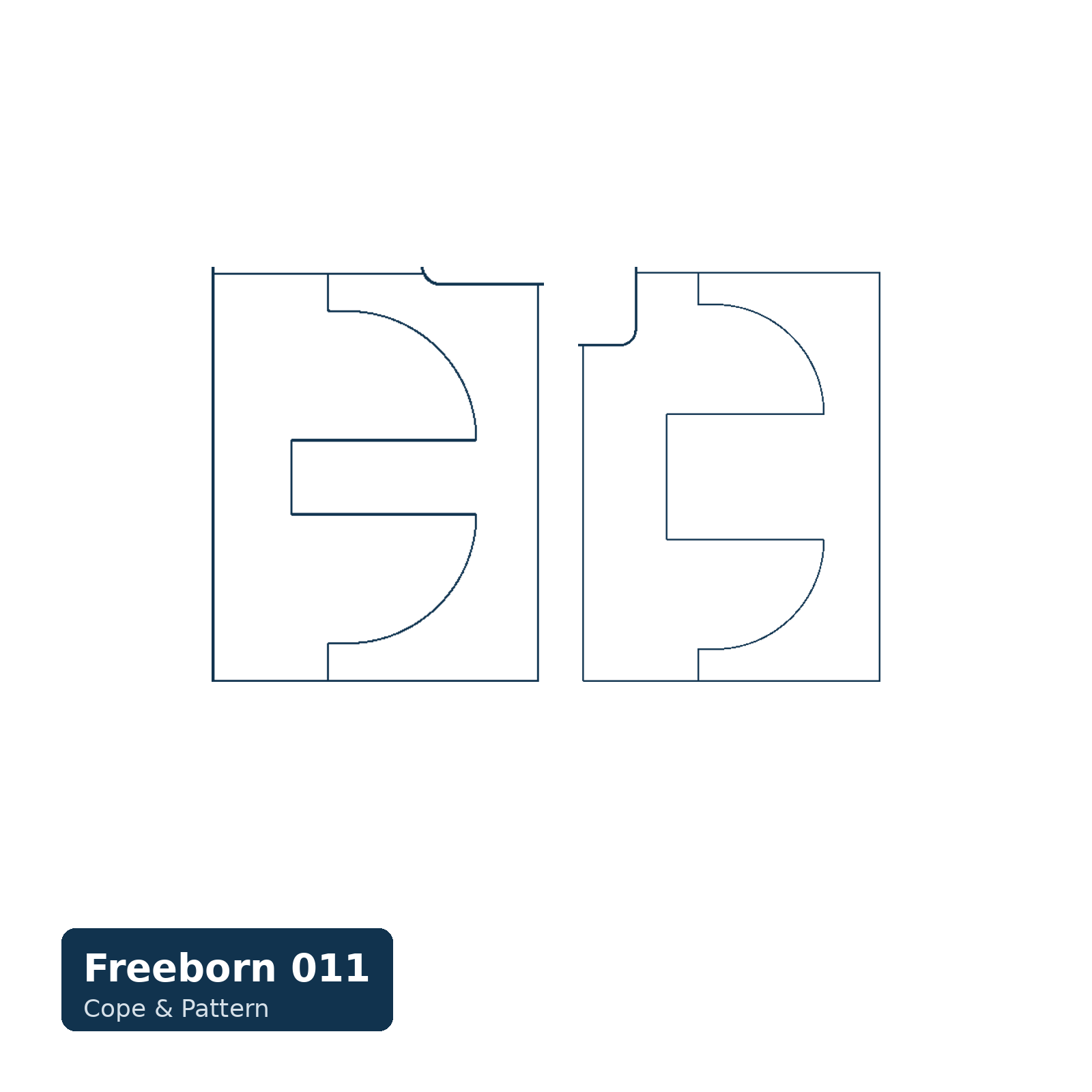

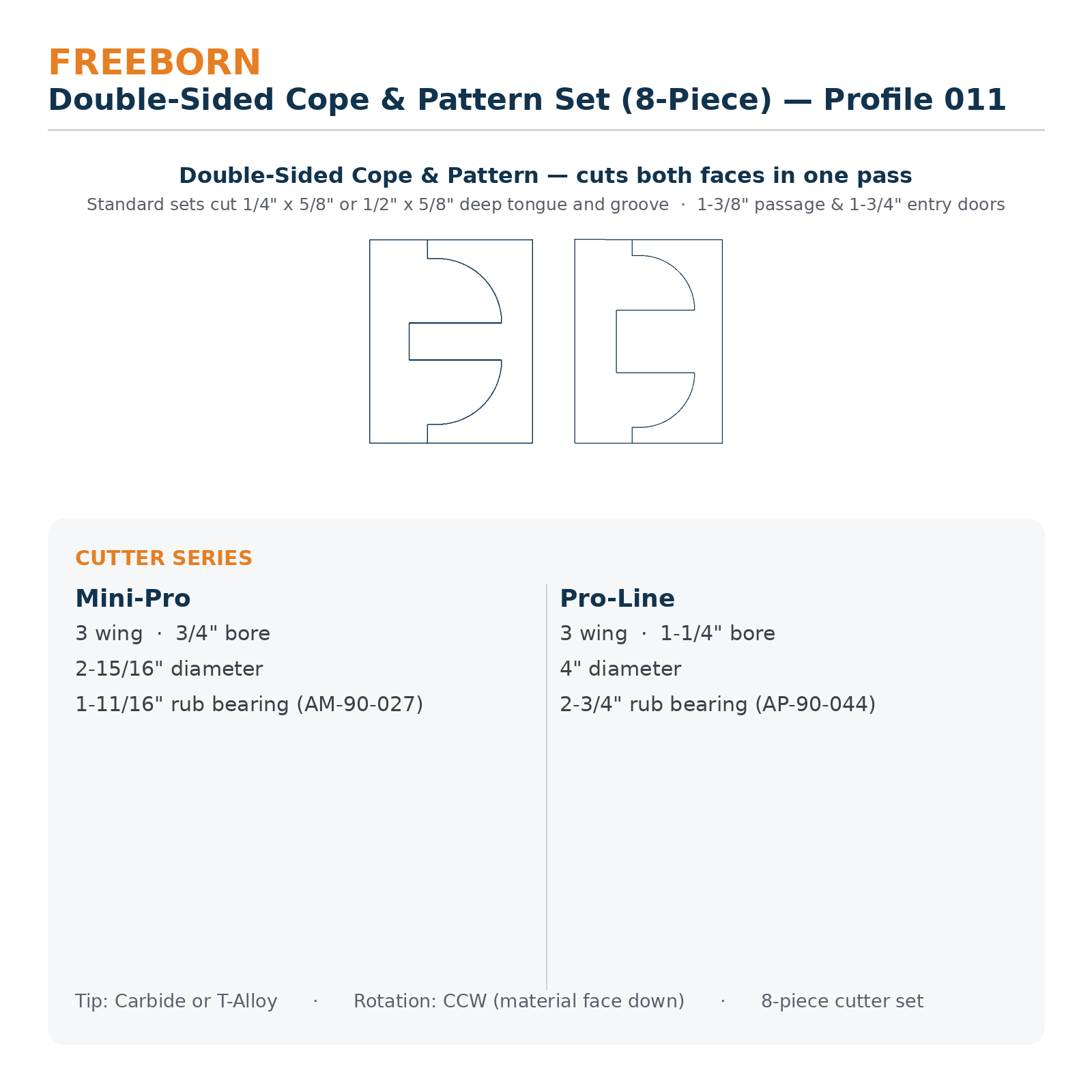

A complete eight-piece double-sided Cope & Pattern set – it profiles both faces of the frame for a reversible stile-and-rail door. It cuts the cope, its matching pattern, a matching glass-panel profile, and a tongue-and-groove, and covers 1-3/8″ passage and 1-3/4″ entry doors by swapping the center cutters. Runs counter-clockwise on an AM-90-027 rub bearing. Profile 011 selects the sticking profile shown in the product image. Mini-Pro: 3/4″ bore, 2-15/16″ diameter, three wings, carbide. The Pro-Line counterpart is FB-DS-PL-011.
