Raised Panel Cutter — Profile 004, Pro-Line (1-1/4″ Bore)

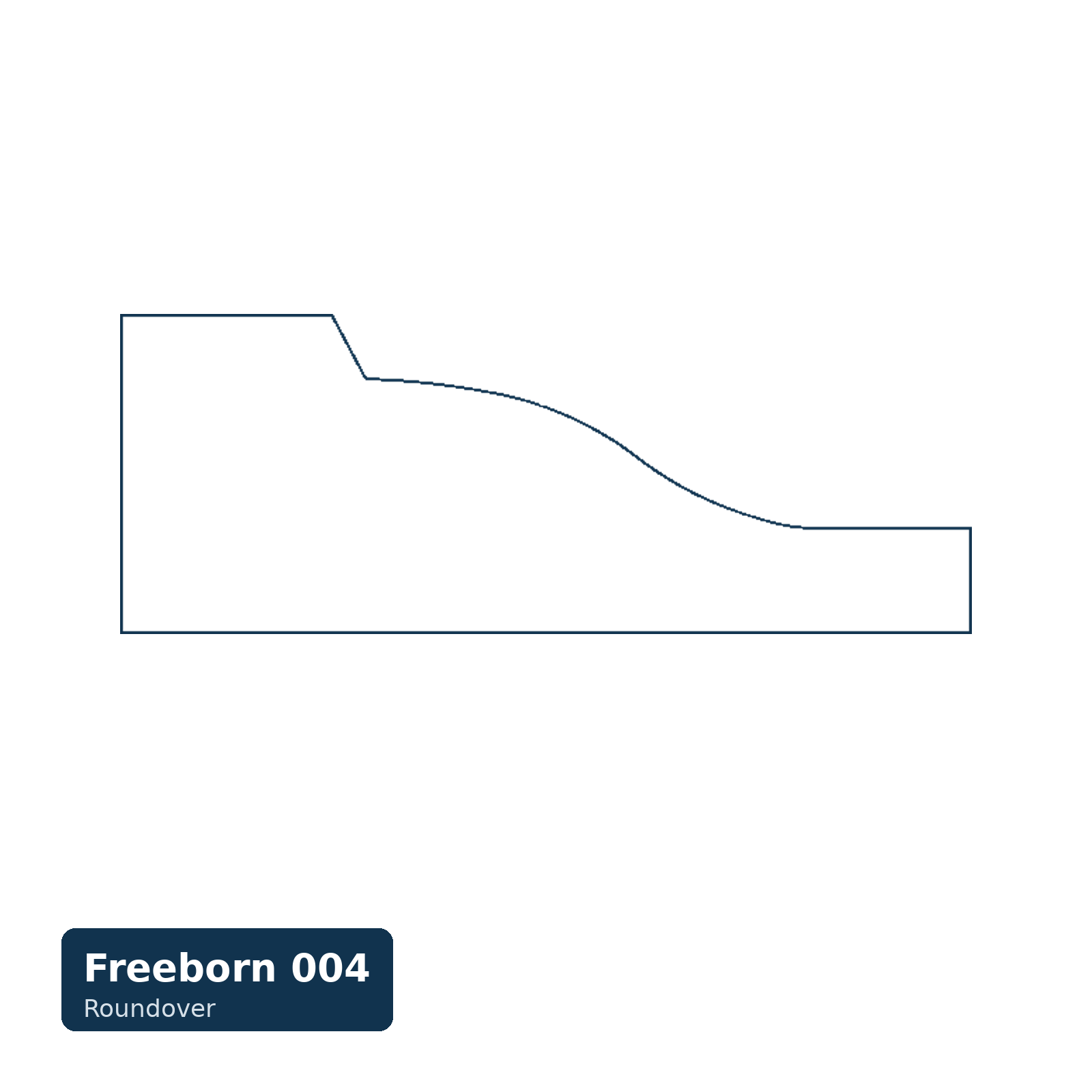

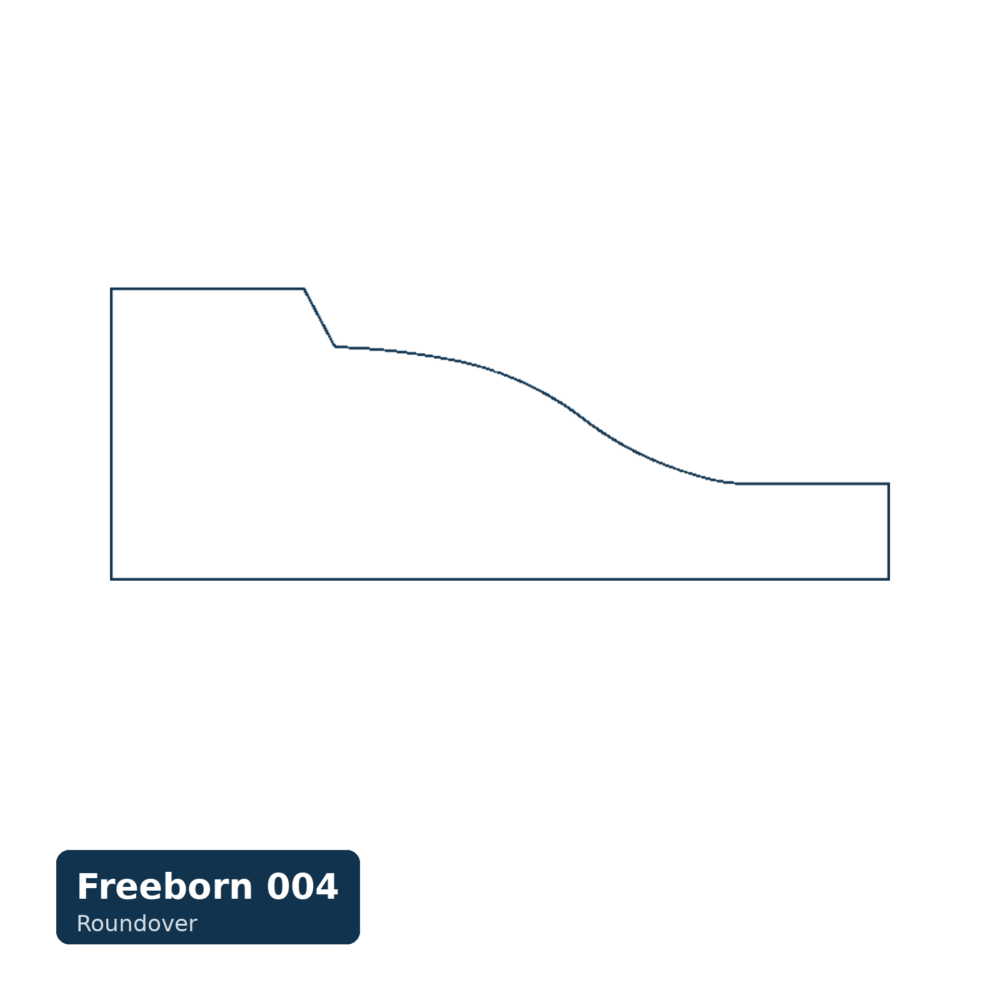

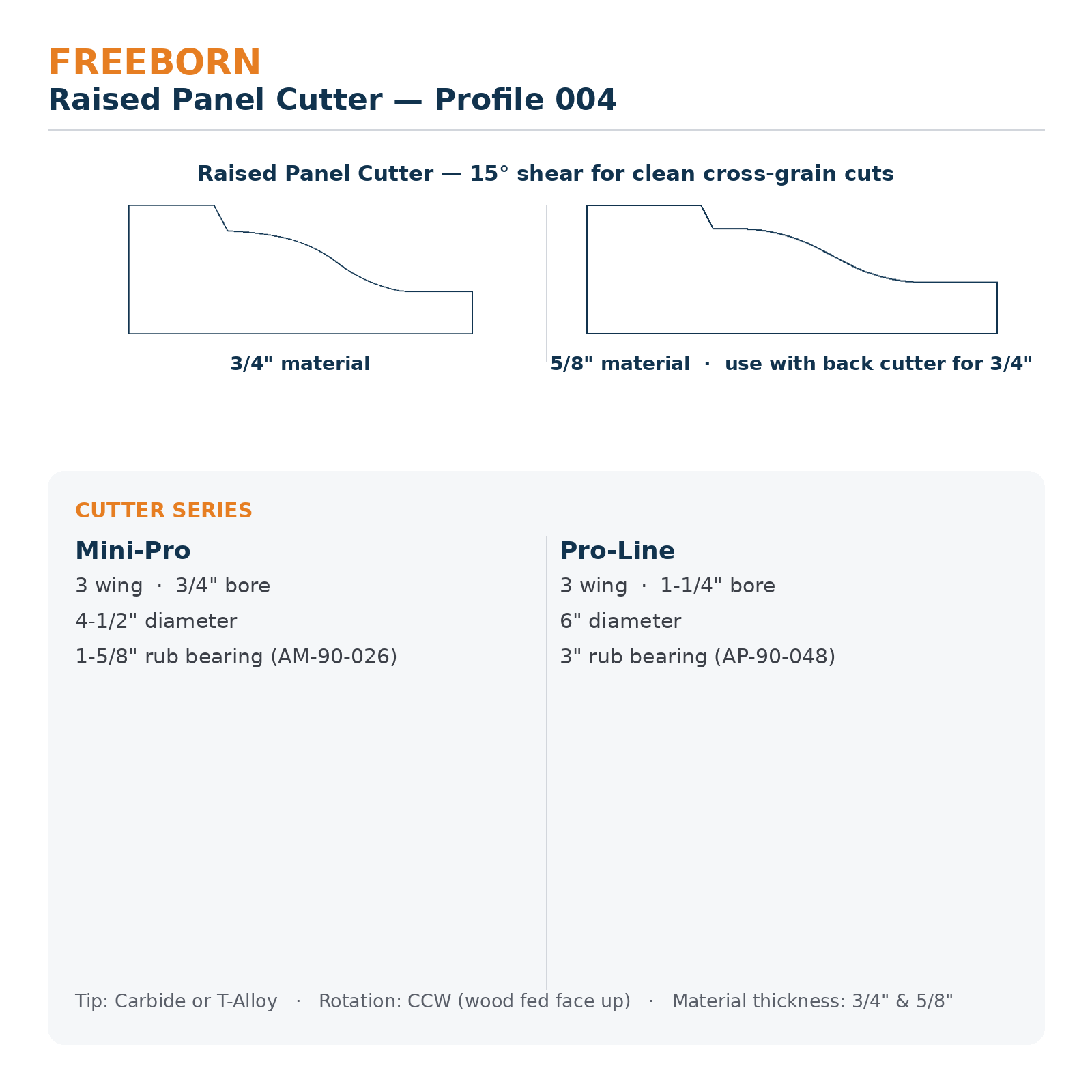

Raises the center field of a solid-wood cabinet-door panel to the profile 004 edge — one of the profiles in Freeborn’s FB-SRP Pro-Line raised-panel series. The 15° shear angle slices cross-grain cleanly for a tear-free shoulder, and the cutter runs in coordination with a matching cope & pattern set on the frame stiles and rails to complete the door. The exact edge shape is carried by Freeborn’s profile 004 reference drawing rather than a shape name — match it to the drawing for the detail you want. Pro-Line build: 3-wing, 1-1/4″ bore, 6″ diameter, counterclockwise, in carbide or T-Alloy; runs with an AP-90-048 rub bearing and cuts both 5/8″ and 3/4″ panel stock. Mini-Pro counterpart is FB-SRP-MP-004 (3/4″ bore, 4-1/2″ diameter).
