Insert Knife Head — 5″–6″ Dia × 25mm Wide, 3-Knife

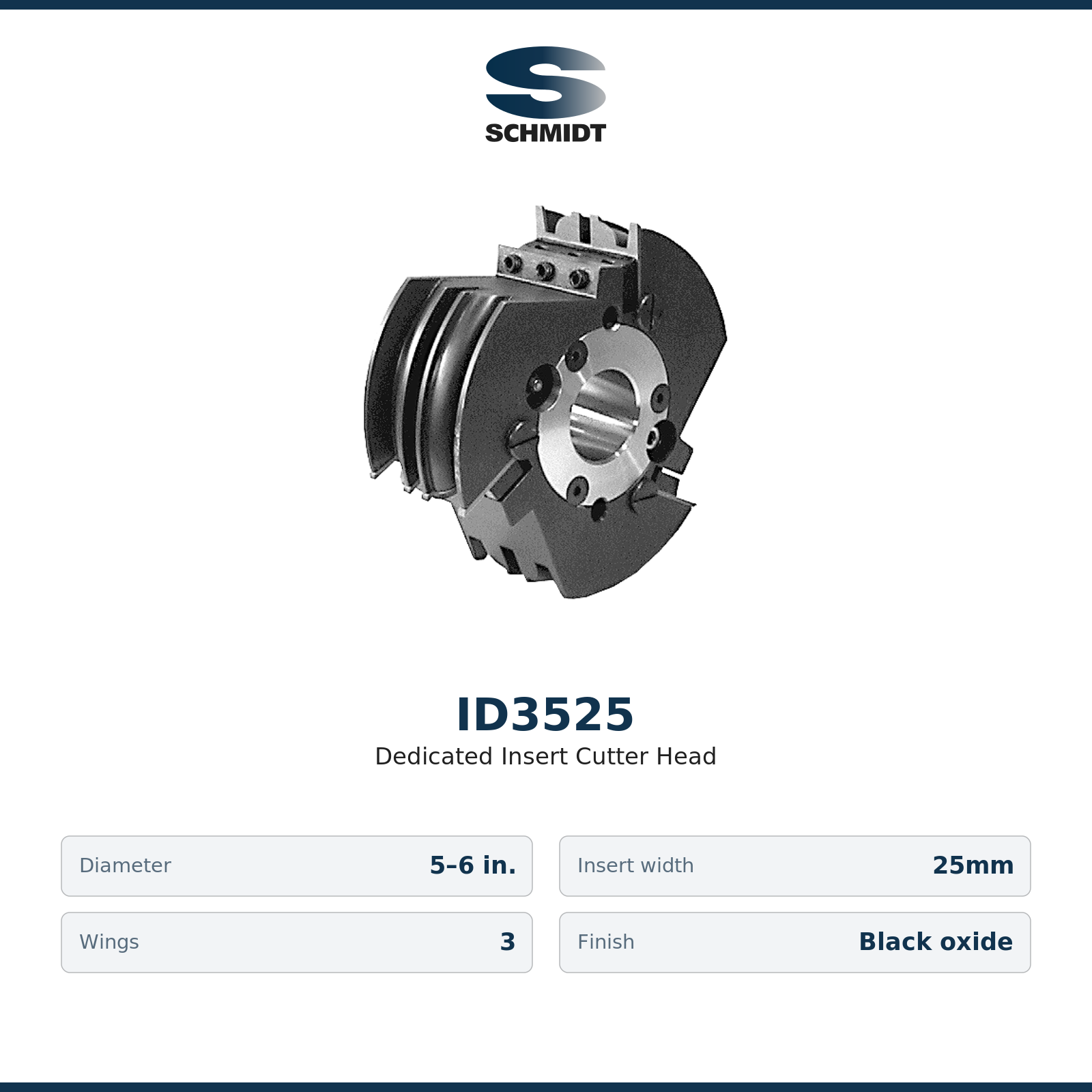

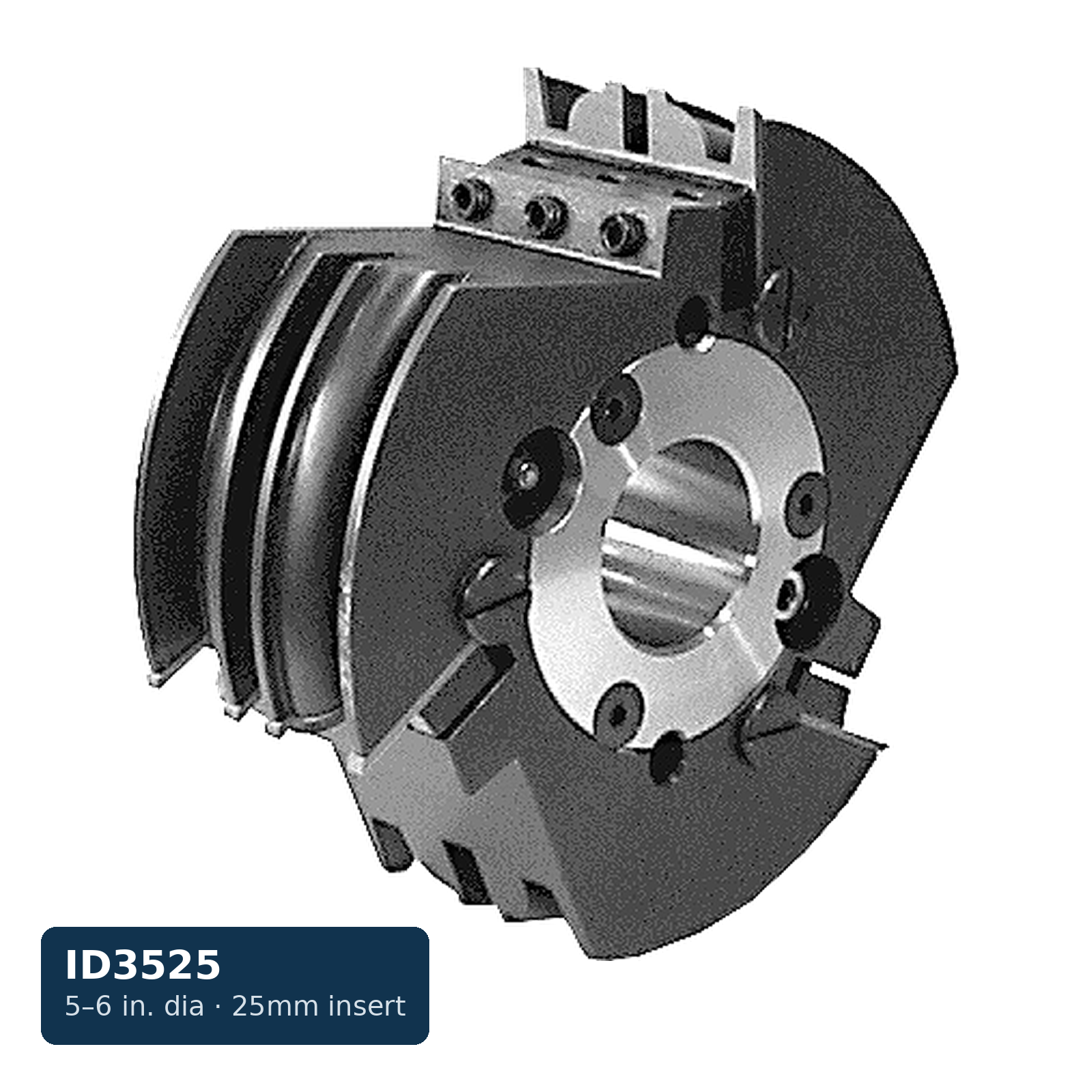

The ID3525 is a dedicated 3-wing insert cutter head, 5″–6″ diameter with a 25mm insert (cutting) width, for running one fixed profile over long production runs at consistent quality. The 5″–6″ body suits mid-size mouldings run at production speed. Where the same profile is cut repeatedly — and in abrasive man-made materials — a dedicated head eliminates cutter swaps between jobs and keeps downtime low; the C4 carbide inserts index to a fresh edge with repeatable accuracy. Made to industry standards, the inserts are readily available and outlast comparable brazed tooling many times over, and multiple edges can often be ground on one insert. Standard bores are 30mm, 1-1/4″, 1-1/2″, 40mm, 1-13/16″, and 2-1/8″; black-oxide finish. Additional wings or hydro bores quoted on request. Price is for the body; inserts sold separately from the carbide insert chart.
