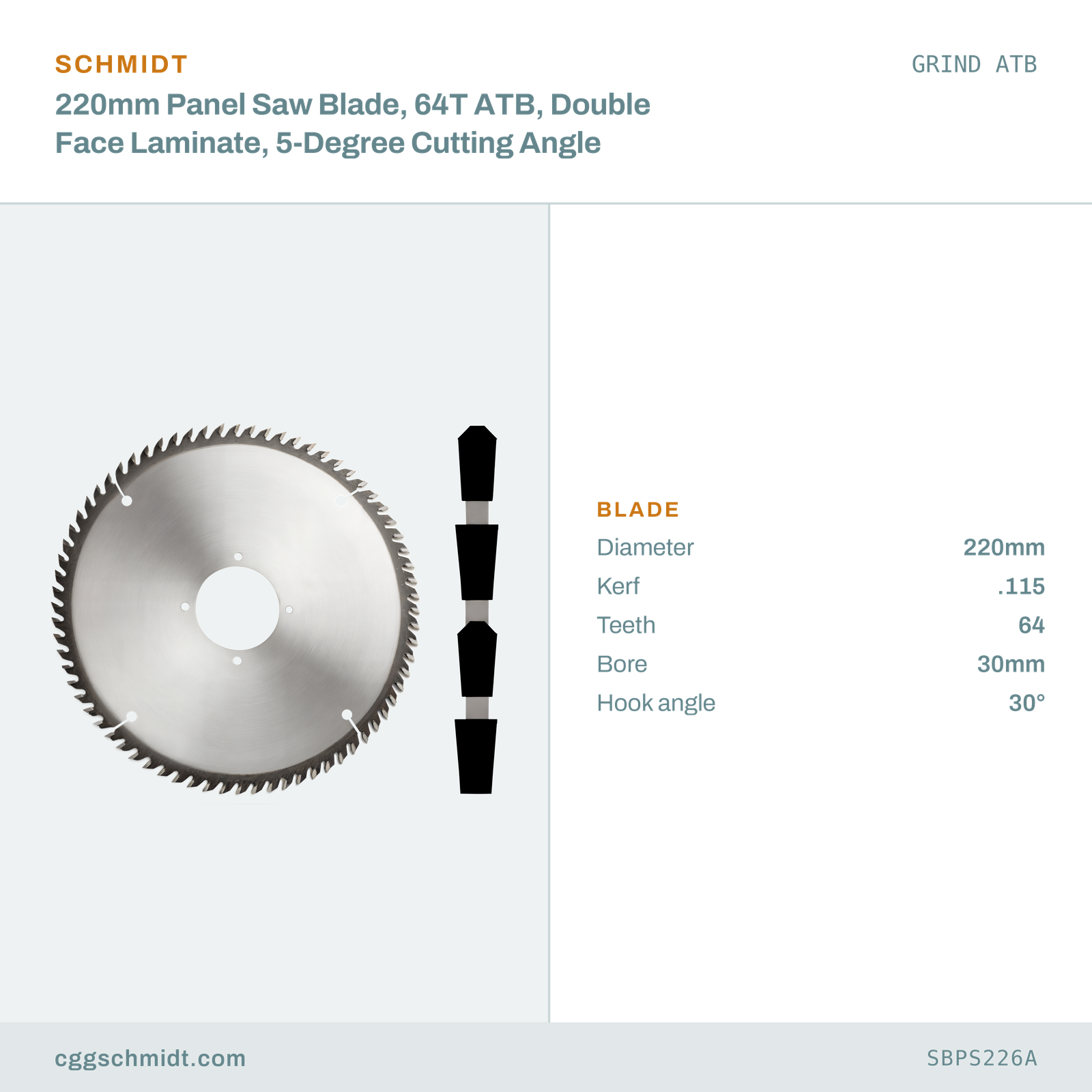

220mm Panel Saw Blade, 64T ATB, Double Face Laminate, 5-Degree Cutting Angle

Double-face laminate panel requires tooth geometry that shears cleanly on both faces without fracturing the resin surface. This 220mm ATB blade at 64 teeth on a 30mm bore is configured for double-face laminate cutting on European sliding panel saws, with a 5-degree cutting angle matched to the saw’s blade geometry. Alternate top bevel geometry at 64 teeth shears the laminate surface rather than fracturing it — the alternating tooth angles enter the material from opposing directions, keeping entry and exit faces chip-free through the full cut. At 220mm with a 30mm bore, this blade fits the European sliding panel saw format standard in commercial cabinetry and panel processing operations. The 5-degree cutting angle specification matches this blade to the correct machine geometry for clean engagement through the panel. Carbide tips are precision-ground to ATB geometry to deliver consistent laminate cutting performance through extended production runs. In high-volume cabinet shops and panel fabrication facilities cutting double-face melamine, pre-veneered plywood, and laminate-surfaced panel goods, this blade delivers chip-free edges on both faces in a single pass.
