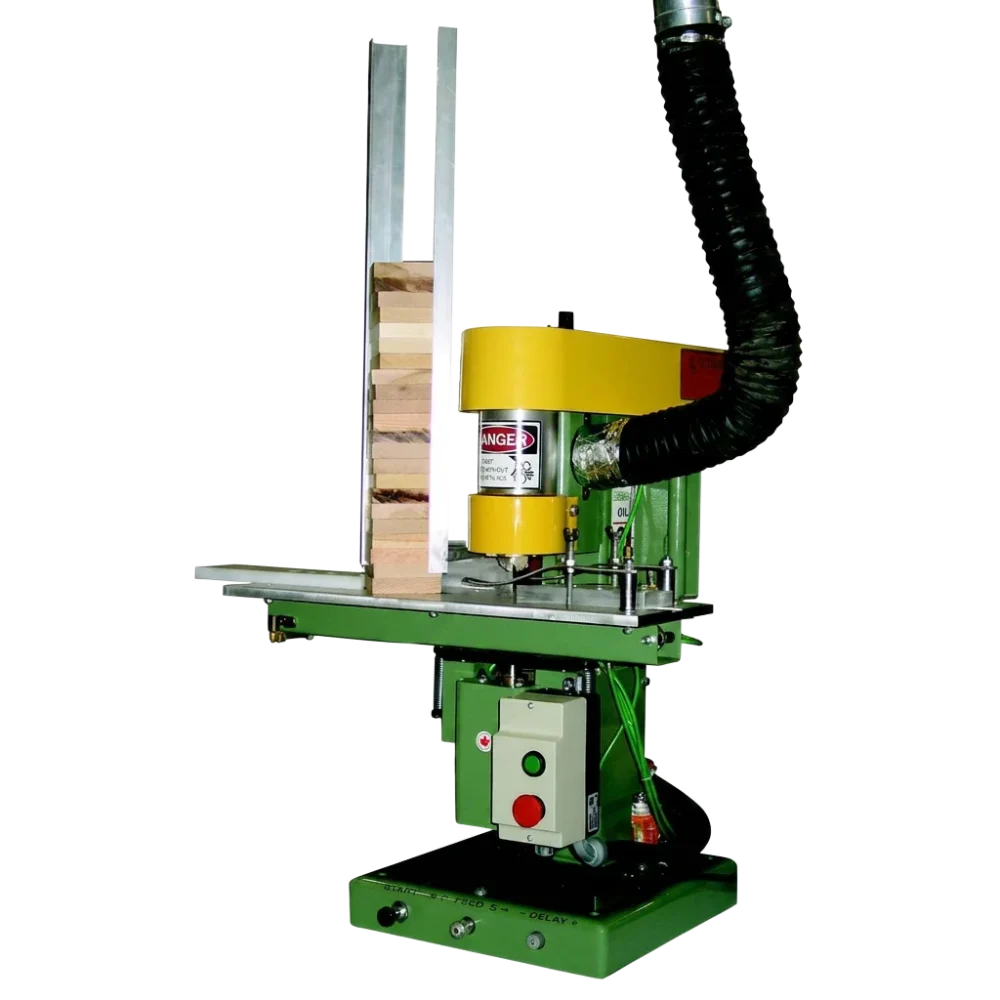

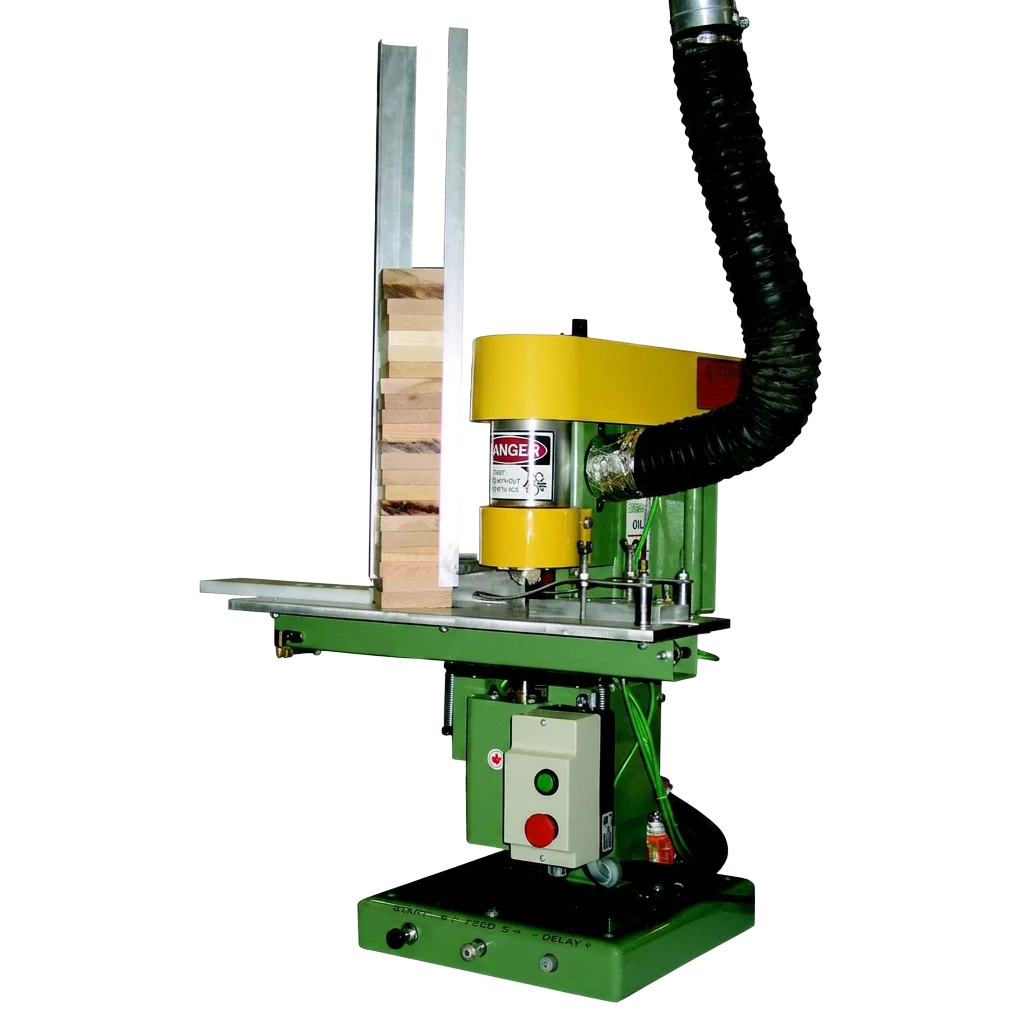

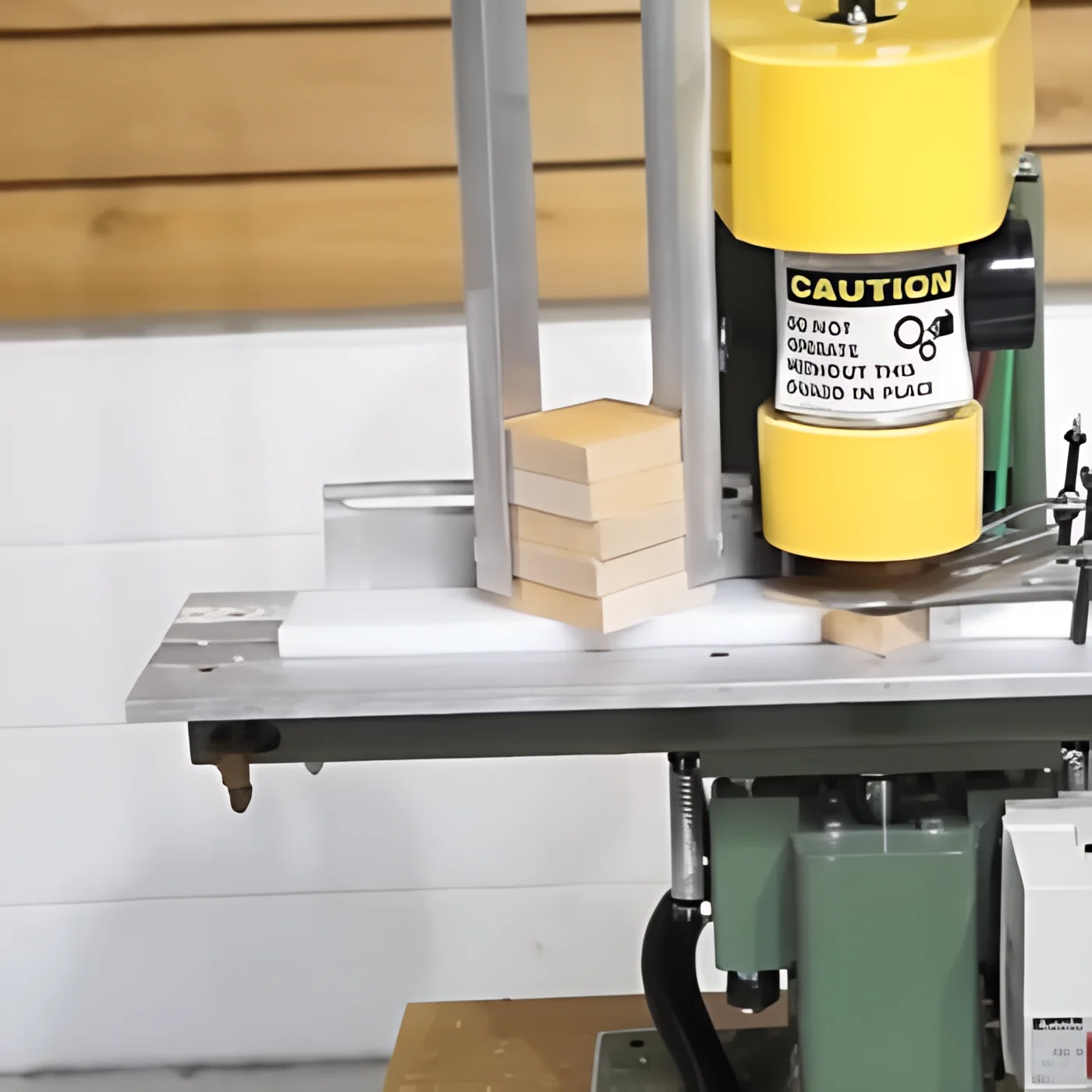

Mikron R200 Automatic Rosette Maker
Fully automatic, shop-floor portable, and built to run production volume of decorative rosettes for door, trim, and millwork work.
Blanks load from the hopper and the machine clamps, cuts, and ejects them automatically at up to 500 rosettes per hour. One operator can keep it running alongside other work rather than cutting rosettes one at a time on a shaper or drill press.
The R200 accepts 2-1/2″ to 5″ squares, covering most architectural rosette sizes for doors, casings, and crown returns. A 7,500 RPM cutter leaves a clean face with minimal sanding, and hydraulic feed holds consistent pressure through the cut for repeatable results across a run.
For shops buying rosettes by the carton or producing them by hand, the R200 brings that work in house. Contact Schmidt for pricing, available cutter profiles, electrical requirements, and lead time.
Features
Automatic loading & clamping
Feed the hopper and the machine handles the rest — no operator holding blanks one at a time.
Hydraulic feed
Controlled, consistent pressure through the cut for a clean face without grabbing or chatter.
Handles 2½” to 5″ squares
Covers the majority of architectural rosette sizes for doors, casings, and crowns.
7,500 RPM cutter
High cutter speed means minimal burn and minimal sanding — parts come off ready to finish.
Automatic high-speed ejection
Finished rosettes drop clear of the cutter into your bin, with no manual unloading between cycles.
Shop-floor portable
Small enough to move to the work — between mill and assembly, or into a custom-door cell.
Specifications
| Production rate | Up to 500 rosettes per hour |
|---|---|
| Blank size | 2½” to 5″ squares |
| Cutter speed | 7,500 RPM |
| Feed | Hydraulic (automatic) |
| Loading | Automatic from hopper |
|---|---|
| Ejection | Automatic high-speed |
| Built in | Renfrew, Ontario, Canada |
| Manufacturer | Mikron |
