Shop Fox Moulder/Planer
The Shop Fox Moulder/Planer is a combination machine that delivers both custom moulding and straight planing capability from a single floor footprint — designed for small-to-mid woodworking shops and millwork operations that need profile running capability without a dedicated four-sided moulder. Precision-ground cast iron wings provide greater workpiece support and stability during the cut, reducing chatter and improving surface quality on both moulding passes and planing operations. The cast iron construction provides the mass and rigidity needed for consistent cuts in hardwood without deflection.
For millwork shops, cabinet shops, and custom woodworking facilities producing door casings, window trim, base moulding, and other solid wood profile work in modest volume, the Shop Fox Moulder/Planer provides the capability to run custom profiles in house rather than outsourcing.
Contact Schmidt for full electrical specifications, available cutterhead configurations, and infeed/outfeed capacity.
From the manufacturer

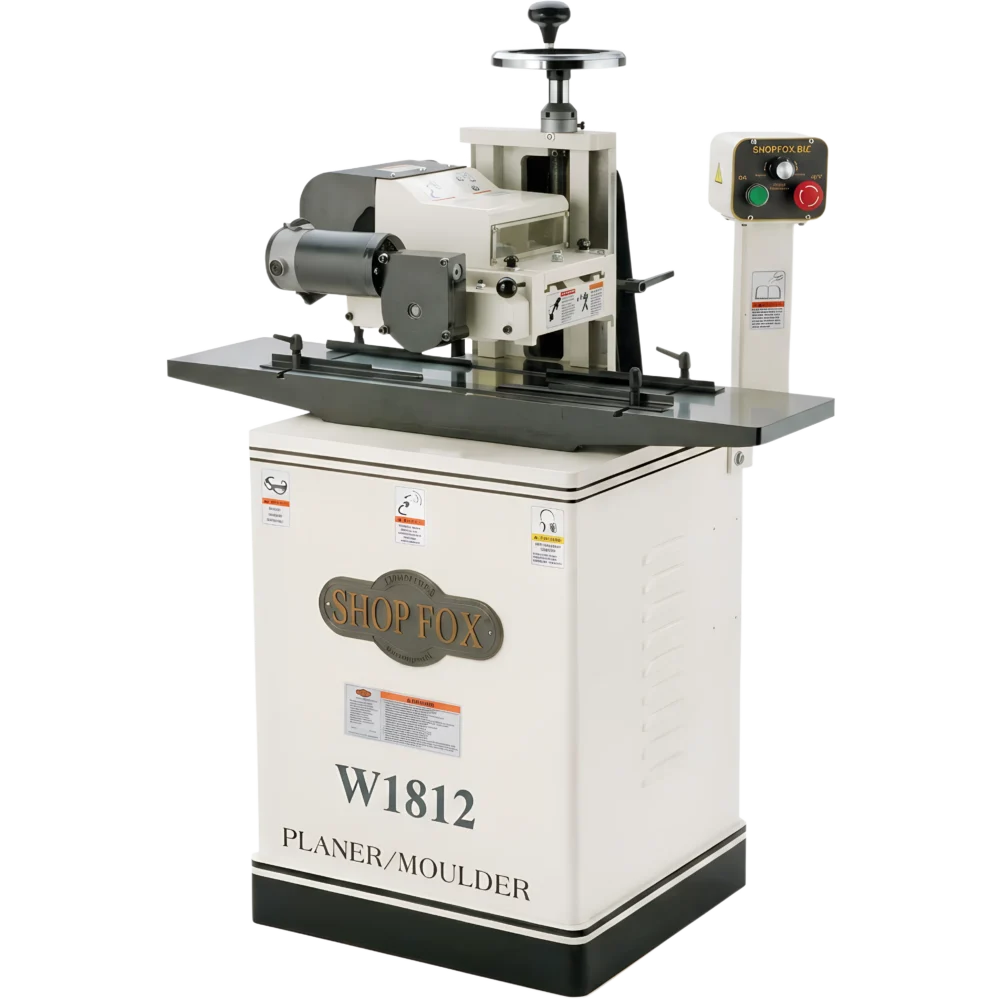

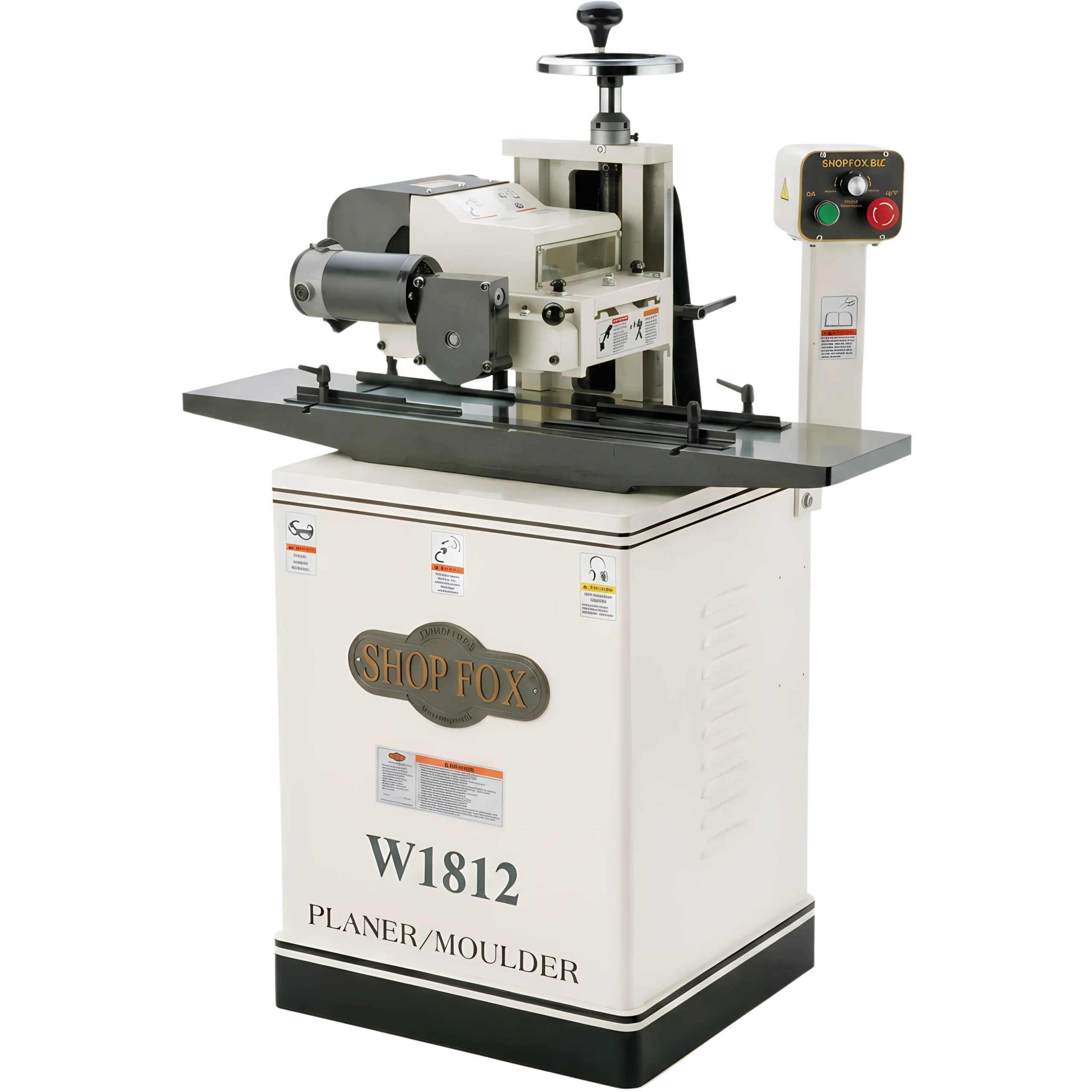

Shop Fox W1812 Planer Moulder
with stand

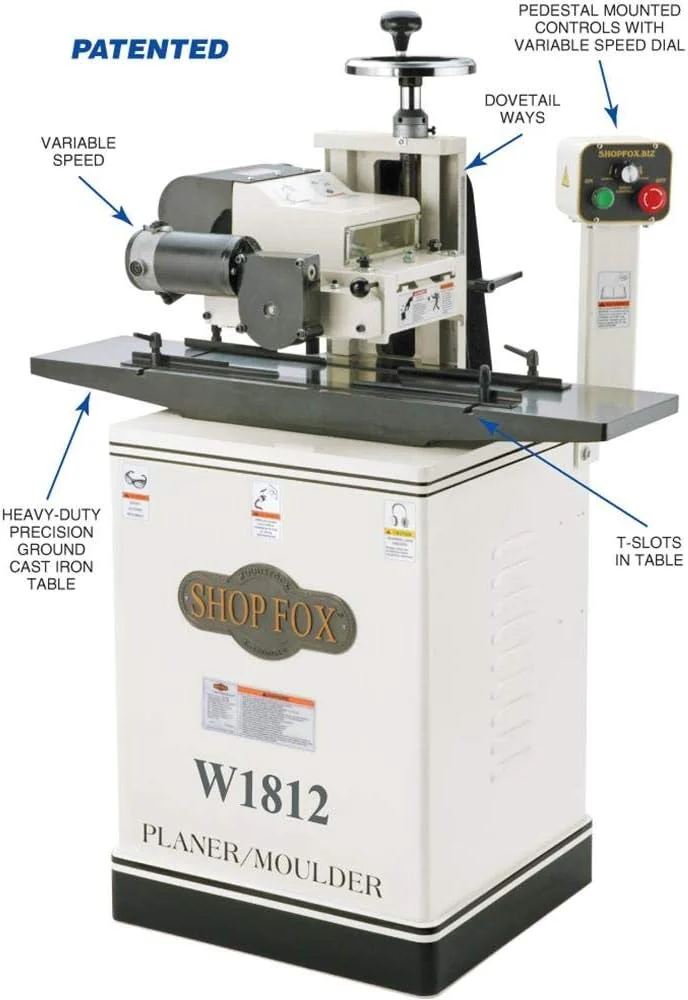

This next generation Planer / Moulder features precision ground cast iron wings for greater work support, T-slots for easy guide rail adjustment, pedestal mounted controls, improved chip clearance, one-piece enclosed stand and variable speed control for unsurpassed planing and moulding capability. The open-sided design allows you to make elliptical mouldings with the optional elliptical jig. If you make your own mouldings and frames, you need this machine.
Heavy Duty Construction

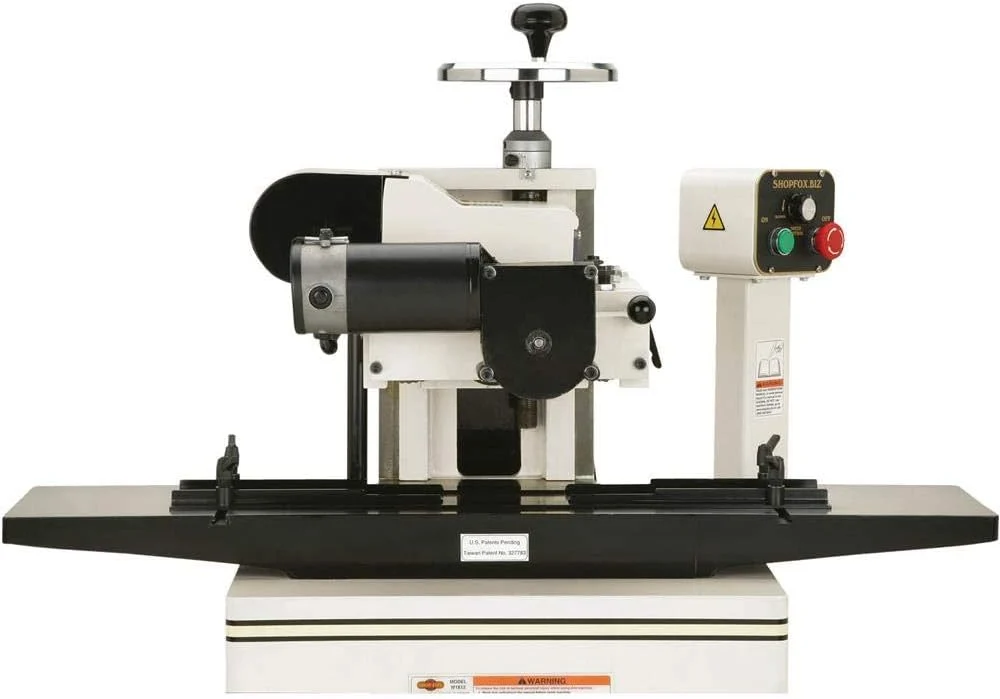

This solidly built machine offers superior vibration dampening to produce exceptional results in even the most challenging moulding profiles. The headstock unit travels on twin dovetailed ways that is easy to adjusts to the desired depth of cut with the oversized cast iron handwheel that locks firmly in place with the ratcheting lock-lever.
Cast Iron Table
The heavy-duty precision ground cast iron table measures 36-1/4-inch in length with wings and 10-inches in width and provides excellent work support. Machined into the in-feed and out-feed tables are T-slots to allow quick and easily adjustments to the fence. The fence is secured at both ends with ratcheting lock-levers.
Specifications
- Motor: 2HP, 230V, single-phase, TEFC, 3450 RPM, Amps: 10.8
- Maximum planing width: 7-inches
- Maximum planing height: 7-1/2-inch
- Maximum profile width: 6-3/4-inch
- Maximum profile depth: 3/4-inch
- Minimum stock thickness: 1/4-inch
- Minimum stock length: 9-inch
- 2 HSS knives 7-1/8 L x 1-1/2 W x 1/4-inch T
Open End Design
The machine’s open-end design allows you to make elliptical mouldings using an optional elliptical jig (D3393 sold separately). The elliptical jig is an ideal accessory to create round-top windows and arched panelways that are characteristic of fine custom woodwork.
4-Inch Dust Port
The W1812 features a 4-inch dust port which can be connected to a dust collection system to help keep your workshop clean.
Standards
This product meets Underwriters Laboratories (UL) 987-7 and Canadian Standards Association (CSA) C22.2 No. 71.2-10 safety standards.
Features
- Precision-ground cast iron infeed and outfeed extension wings
- Dovetailed way for cutterhead housing with precision gib adjustments
- Pedestal-mounted control switch with variable speed control
- Power feed motor: 1/8 HP, 180VDC, 1A
- Power feed motor speed: 0-55 RPM
- Variable speed power feed with chain drive power transfer
- Easy access cutterhead for trouble-free blade changing
Easy access cutterhead for trouble-free blade changing
Easy Access Cutterhead
makes blade changes easy

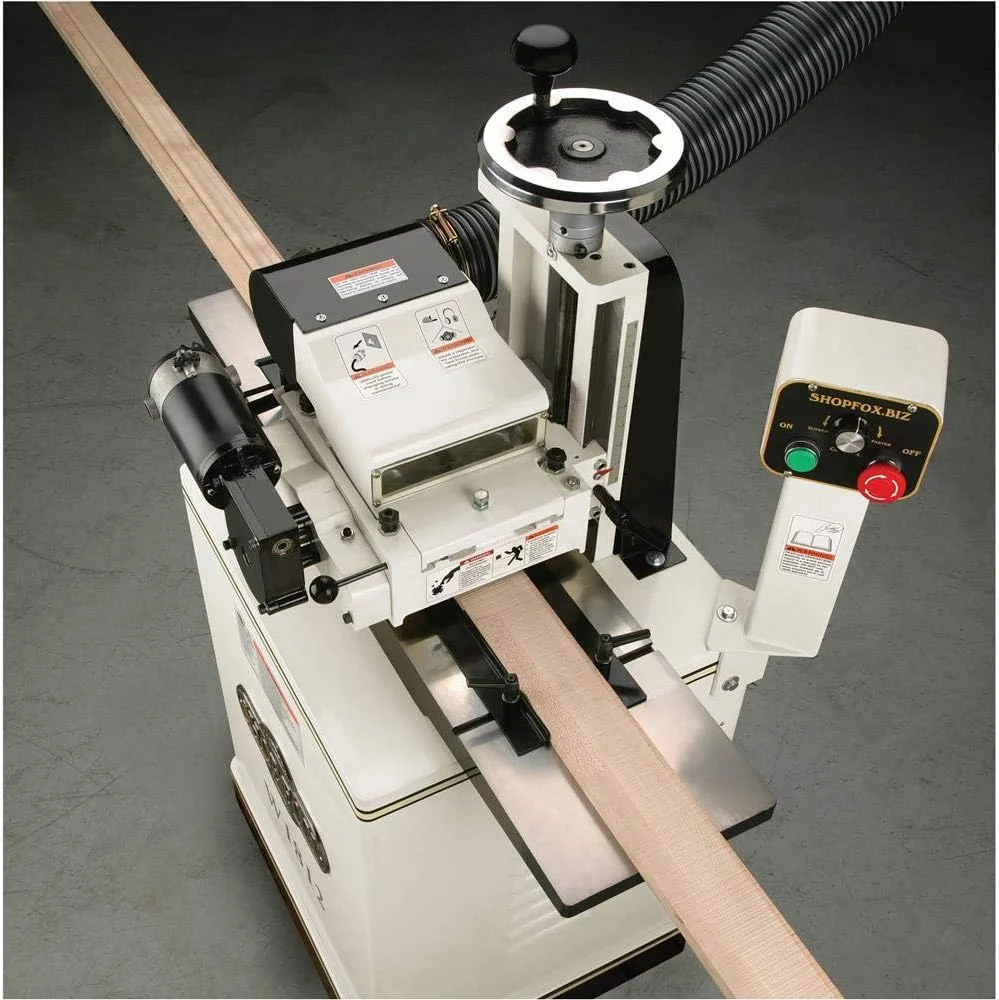

The W1812 offers easy access to the cutterhead for changing planing or moulding blades. This simple indexed bolt-on design means less time spent changing knives and more time spent working. There are hundreds of profiles available on the market and countless numbers of companies able to make just the custom profile you may need for that special job.
- Cutterhead type: square
- 2 HSS knives 7-1/8 inches L x 1-1/2 inches W x 1/4 inches T
- Cutterhead diameter: 1-1/4
- Cutterhead speed: 7000 RPM
Built to Last
This machine has been specially designed to provide many years of trouble free service. Close attention to detail, ruggedly built parts and a rigid quality control program assure safe and reliable operation.
